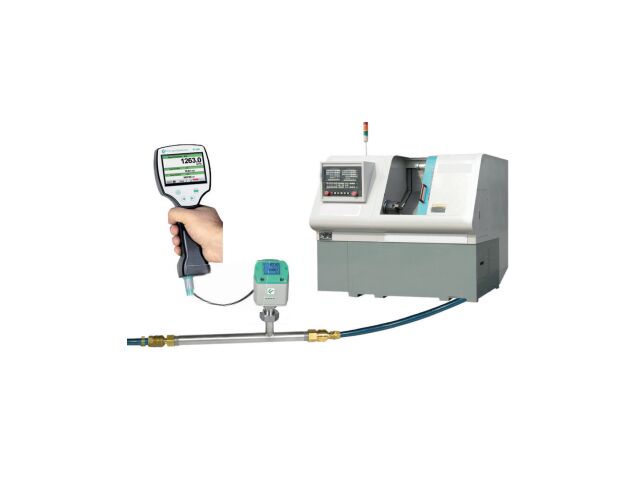

Portable flow meter - PI 500

The portable flow meter PI 500 is an all-purpose hand-held measuring instrument for many compressed air and gas applications in industry like e.g.:

- Flow measurement
- Pressure-/ vacuum measurement
- Temperature measurement
- Moisture/ dew point measurement

The graphic indication of coloured measurement curves is inimitably. Up to 100 million measured values can be stored with date and name of measuring site. The measured values can be transferred to the computer by means of a USB stick. The data can be comfortably evaluated with the CS Soft Basic software. Measured data and service reports can be issued easily and quickly. The following sensors can be connected to the freely configurable sensor input of PI 500:

- Pressure sensors (high and low pressure)
- Flow sensors, VA 500 / VA 520
- Temperature sensors Pt 100, Pt 1000 / 4...20 mA
- Dew point sensors FA 510 / FA 515
- Effective power meters
- Opitonal third-party sensors with the following signals: 0...1/10 V, 0/4...20 mA, Pt 100, Pt 1000, pulse, Modbus
