Pressure gauges for gas and liquid

Manometers

Vote

“ ✔ Wide range of pressure gauges ”

Ask for a quote

Presentation

The pressure gauges offered by the SENGA company are designed to measure the pressure of different types of fluids (gaseous or liquid) with low viscosity or corrosive to copper and tin alloys.

With an ABS or stainless steel case, these pressure gauges have an IP 31 or IP 65 protection rating, depending on the model. They are temperature resistant from -20 to +80°C and operate at pressures from -1 to +600 bar.

Different types of pressure gauges are available:

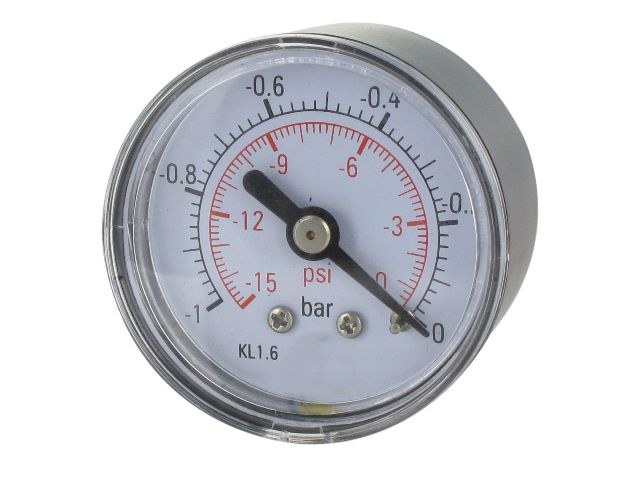

Dry pressure gauges with ABS housing which are mainly used for compressors, pressure reducers and other applications in the industrial pneumatic installations and lines sector.
Glycerine pressure gauges with stainless steel housing, which are suitable for equipment subject to high vibration.

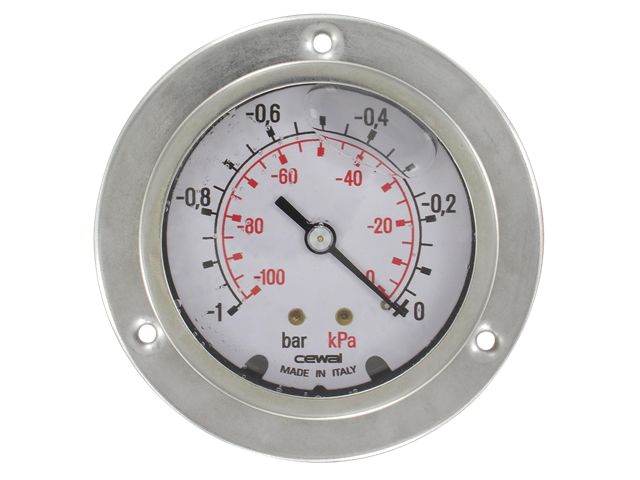

Glycerine pressure gauges with stainless steel housing and 3-hole front flange.
Dry pressure gauges with stainless steel housing.

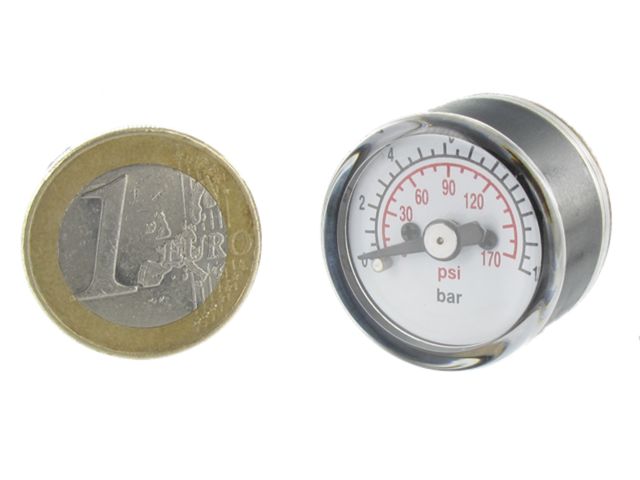

Miniature pressure gauges.

https://www.senga.fr/en/products-e-shop

Technical features

Accuracy class: 1.6 or 2.5 Glycerine bath (98 % bi-distilled) or dry Axial (back) or radial (bottom) connection Connections : G1/8 Sight glass: kostil or polycarbonate Working temperature: between -20 °C and +80 °C Working pressure: between -1 bar and 600 bar Diameter: from 40 to 100 mm Materials: steel or aluminium, stainless steel, ABS Protection class: IP 31, IP 65
