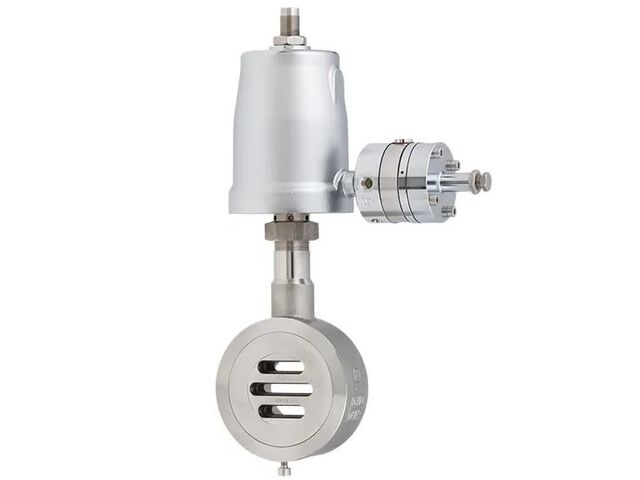

Pressure regulator type 8042 Schubert & Salzer Control Systems GmbH

Pressure regulator type 8042

Regulation valve

Vote

Ask for a quote Receive Documentation Contact the supplier

Product line GS3

The pressure regulator type 8042 in reinforced version is a smart combination of a pilot pressure regulator with a sliding gate control valve and is excellently suited for gases and vapors. The pressure regulator, which operates with auxiliary pneumatic energy, is characterized by highest dynamics and control quality. External or manual set point adjustment completes the compact and simple design of the valve and regulator.

  • Size:

    DN15 - DN150

  • Pressure:

    PN10/40

    ANSI #150, #300

  • Material:

    Stainless steel:

    Body 1.4408

    Cover 1.4404

    Carbon steel:

    Body 1.0619

    Cover 1.4404

  • Temperature:

    Media temperature: -10 °C up to 230 °C

    Special versions available on request.
