PROFIBUS cable with PLTC-ER approval for unprotected use on cable trays
PROFIBUS DP cable with PLTC-ER approval acc. to UL, for open wiring on cable tray. Temperature range from -40°C bis +80°C
PLTC-ER (power limited tray cable - epxosed run)
Benefits
-
Cables can be used for PROFIBUS-DP as well as PROFIBUS-FMS and FIP
-
PLTC-ER approval for open wiring between cable tray and industrial machines/plants acc. to NEC 725.154 (D)
-
No additional protection of the cable needed
Application range
-
For fixed installation or applications with occasional movements
-
PROFIBUS DP (in accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC® NET, also suitable for FIP - Factory Instrumentation Protocol).
Product features
-
Based on the bit rates listed, in accordance with PNO specifications the following maximum cable lengths for a bus segment apply
(cable type A, PROFIBUS-DP):
93.75 kbit/s = 1200 m
187.5 kbit/s = 1000 m
500 kbit/s = 400 m
1.5 Mbit/s = 200 m
12.0 Mbit/s = 100 m
-
UV-resistant UL SUN RES
-
Flame retardant acc. UL 1685 - FT4 (vertical tray)
Norm references / Approvals
-
c(UL)us Typ CMG (75°C) acc.to UL 444 / CSA 22.2
-
UL Type PLTC-ER acc. to UL 13

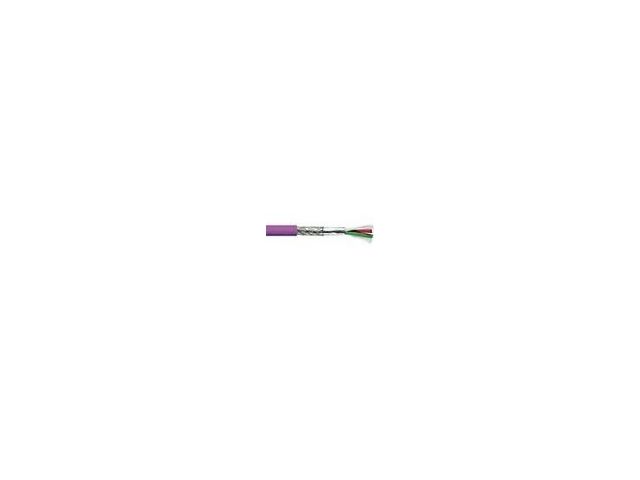

Product Make-up
-
Bare copper wire, 0,64 mm diameter
-
Core colours: red, green
-

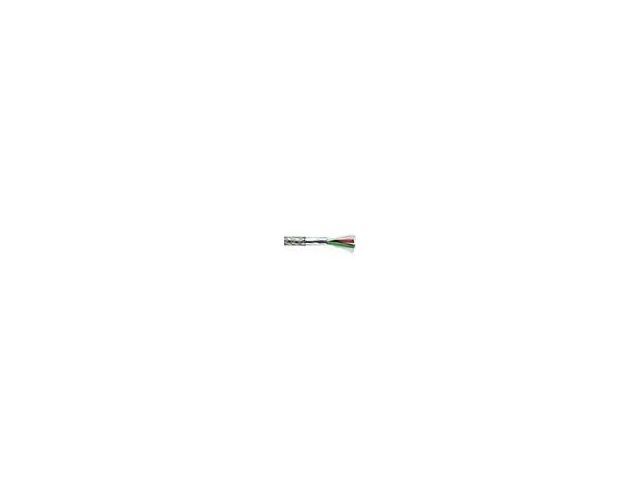

Overall screening with copper braid and plastic-laminated aluminium foil
-
PVC inner sheath and outer sheath
-

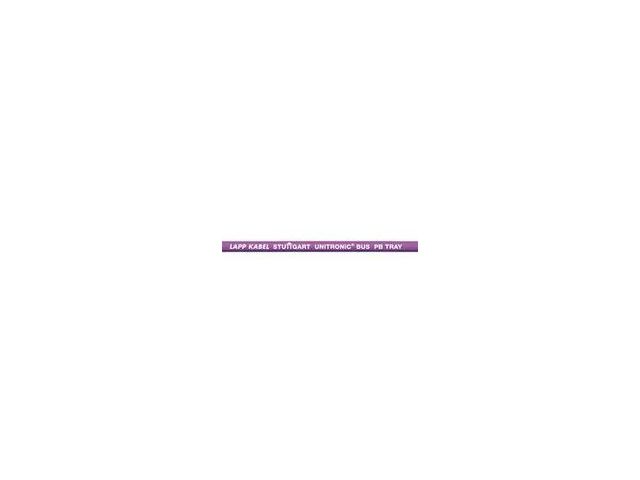

Colour: violet (RAL 4001)
