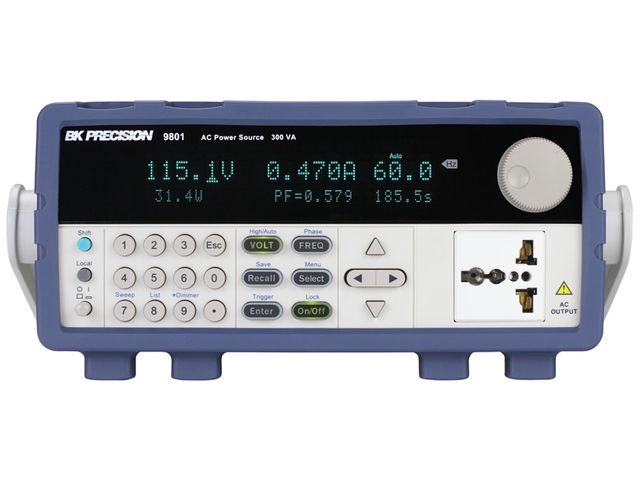

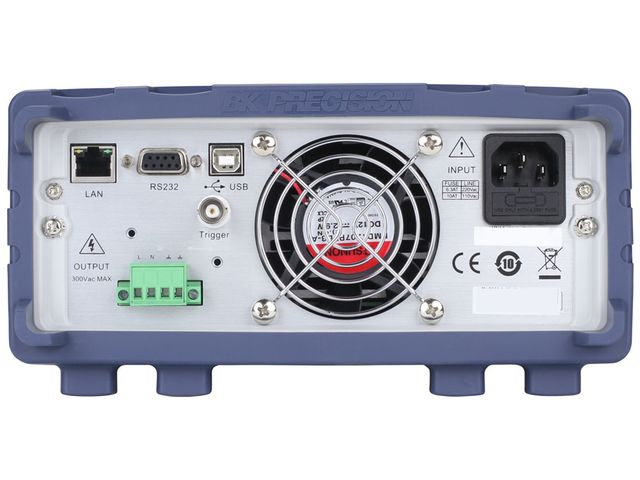

The 9800 Series is both a programmable AC source and measurement tool. These fully programmable linear AC sources deliver a maximum of 1500 VA through the universal line output terminals on the front and the output connector on the rear. The output can be varied from 0 to 300 V with 0.1 V programming resolution. The output frequency can also be adjusted from 45 Hz to 500 Hz with start and stop phase angle from 0 to 360 degrees. The bright VFD display shows Vrms, Irms, Ipeak,frequency, power factor (PF), apparent power, true power, and elapsed output time.
The AC source provides a power line disturbance (PLD) simulator, list mode, and sweep mode for simulation of common power grid faults and disturbances. A built-in dimmer function is also available for testing motors and LEDs.
-
0 to 300 V, low distortion AC power source with models delivering a maximum of 1500 VA, 12 Arms / 48 Apeak
-
Output frequency adjustable from 45 Hz – 500 Hz
-
Select 150 V / 300 V autoranging or 300 V range operation for continuous sweep from 0 - 300 V
-
Displays Vrms, Irms, Ipeak, frequency, PF, apparent power, true power, and elapsed output time
-
Adjustable phase angle control
-
Built-in PLD and dimmer simulation
-
Voltage and frequency sweep mode
-
Downloadable LabVIEW driver and soft panel software for remote control
-
Standard USB (USBTMC-compliant), RS232, LAN, and GPIB (9803 & 9805 only) interfaces
-
Pre-compliance testing for voltage dips and frequency simulation according to IEC61000-4-11 / 4-14 / 4-28
