PU suction & Transport Hose, heavy-duty | Master-PUR HX Food A

PU suction & Transport Hose, heavy-duty | Master-PUR HX Food A - MASTERFLEX

PU suction & Transport Hose, heavy-duty | Master-PUR HX Food A - Plastic sheathing

PU suction & Transport Hose, heavy-duty | Master-PUR HX Food A

Plastic sheathing

Ask for a quote

Presentation

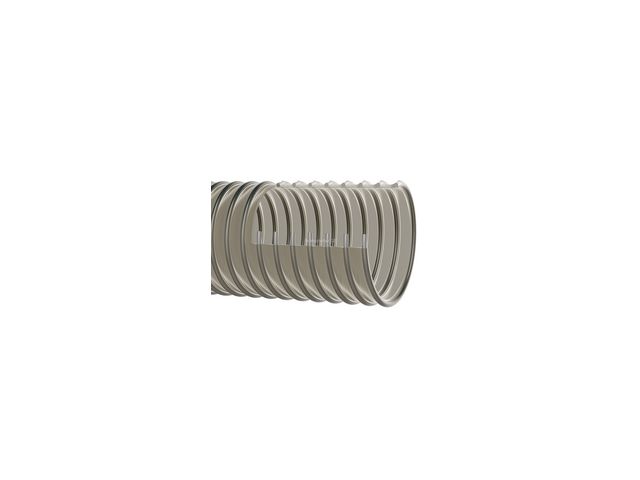

PU suction & Transport Hose, heavy-duty, food-grade quality acc. to EU 10/2011 and FDA, permanently antistatic

Material

spiral: spring steel wire (stainless steel 1.4310)
wall: pure polyether polyurethane, food-grade (FDA), with non-migratory permanent antistatic agent
wall thickness between spirals approx. 1.7 - 2.1 mm, depending on DN

Applications

Phamaceutical industry
Chemicals industry
Food industry

Properties

The hose conforms with EU Guideline 10/2011
Approved for food-grade category: E (contact duration acc. to Test Report)
The material of the wall complies with the FDA food regulations 21 CFR § 177.1680 and 21 CFR § 177.2600
extremely abrasion resistant via specific reinforcements underneath the spiral
approved acc. to TRGS 727 and ATEX 2014/34 EU. Details acc. to certificate
permanently antistatic, surface resistance < 109 Ohm
heavy
flexible
halogen free
optimum flow characteristics

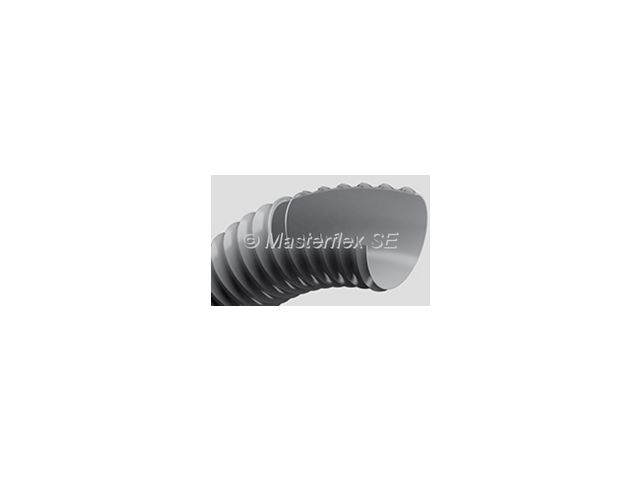

mostly smooth inner lining
odourless/tasteless
microbe and hydrolysis-resistant
increased pressure and vacuum resistance
good chemical resistance
high tensile strength
generally good UV and ozone resistance

Temperature Range

-40°C to +90°C
peaks to +125°C

Technical features

Download the complete technical features
