Quote PVC electrical insulation tape VDE, IMQ & SEMKO (IEC 60454-3-1) : tesaflex® 53948

PVC electrical insulation tape VDE, IMQ & SEMKO (IEC 60454-3-1) : tesaflex® 53948 TESA FRANCE

PVC electrical insulation tape VDE, IMQ & SEMKO (IEC 60454-3-1) : tesaflex® 53948

Electric insulating tape

Vote

Ask for a quote

Presentation

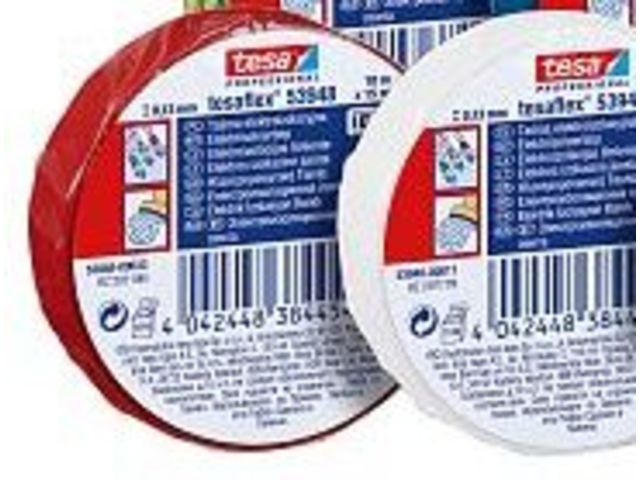

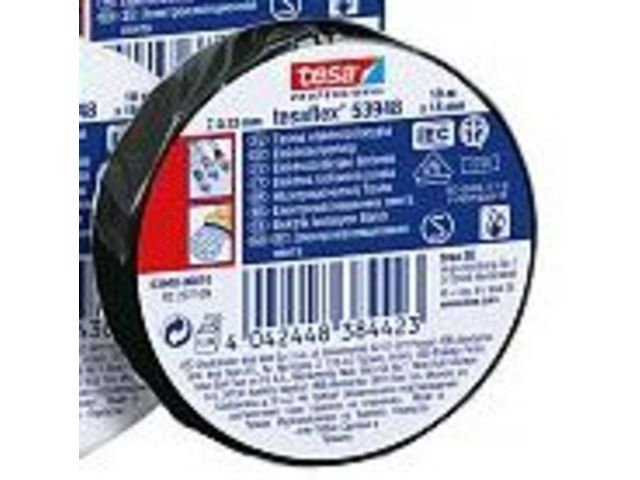

tesaflex^® 53948 is a specially formulated self extinguishing plasticised PVC tape with good film flexibility and adhesion for low temperature application.

Using plasticisers that are indifferent to most wiring system plus a modified rubber adhesive system make tesaflex^® 53948 ideal in electrical insulation application.

tesaflex^® 53948 is tested and certified by VDE, IMQ and Semko.
Main applications :

For most electrical insulation applications
Repairing
Bundling, marking, reinforcing, sealing and protection

Technical features

Total thickness : 130 µm Type of adhesive : natural rubber Adhesion to steel : 2.7 N/cm Elongation at break : 260 % Tensile strength : 32 N/cm Temperature resistance : 90 °C Dielectric breakdown voltage : 5000 volt Certified according to VDE, IMQ, SEMKO, IEC 60454-3-1

Download the complete technical features
