Quick-detachable standard flat spray - INVV series

Vote

“ High quality quick-detachable standard flat spray ”

Ask for a quote

Presentation

The INVV series nozzles’ features:

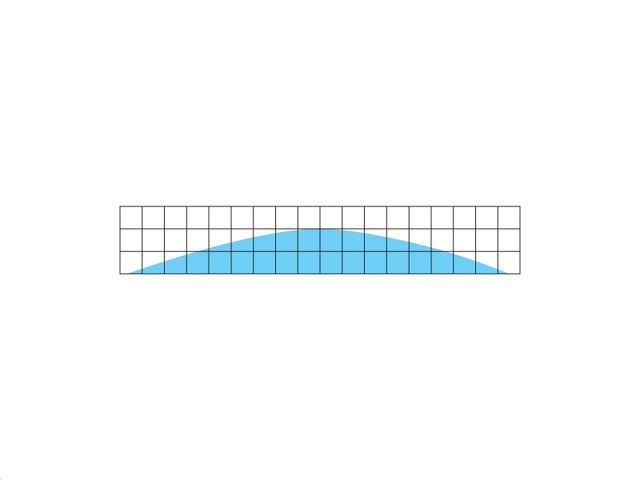

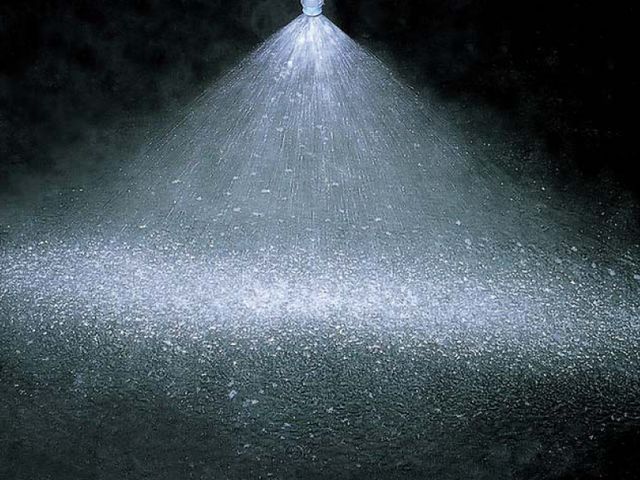

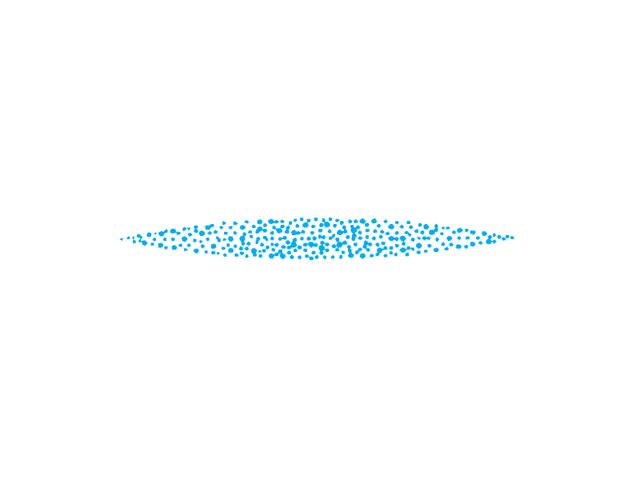

Flat spray pattern with a mountain-shaped spray distribution having gradually tapered edges.
Quick-detachable design helps to greatly reduce maintenance time.
Easy mounting/dismounting with a knurled tab.
No falling off of tip or packing when removing the nozzle part.

[INVV series (plastic)]

Made of high chemical and heat resistant PP (polypropylene).
Nozzle tips are color-coded by spray capacity for easy identification.

[INVV-SS series (metal)]

Made of stainless steel which provides high heat resistance and durability.

The INVV series nozzles have multiple applications:

[ INVV series (plastic) ]

Cleaning
Etching
Stripping
For the applications where precise spray alignment and/or periodic maintenance is required

[ INVV-SS series (metal) ]

Cleaning: Automotive, containers, films, felts, filters, screens, bottles, crushed stones, earth and sand, metal parts, machines, steel plates and pieces
Spraying: Oils, lubricants, glues, insecticides, herbicides
Cooling: Tanks, roofs
Water screen: Dust suppression, deodorization
For the applications where precise spray alignment and/or periodic maintenance is required

Technical features

Pipe conn. size INVV: R 1/8 Spray angle INVV: 50 - 1115°, INVV-SS: 15 - 115° Mean droplet diameter 160 - 400 μm Strainer Not included Standard pressure 0.3 MPa (ca. 3 bar) Spray capacity INVV: 0.5 - 5.0 ℓ/min, INVV-SS: 1.5 - 20.0 ℓ/min Free passage diameter 0.3 - 1.6 mm

Download the complete technical features
