Rainwater filter system for electrical transformer - 15L/min

Rainwater filter system for electrical transformer - 15L/min - GMT INTERNATIONAL

Rainwater filter system for electrical transformer - 15L/min - Water filter

Rainwater filter system for electrical transformer - 15L/min - produit présenté par GMT INTERNATIONAL

Rainwater filter system for electrical transformer - 15L/min

Water filter

Ask for a quote

F15M2: flow rates of up to 15 litres/min (screw or seal type)

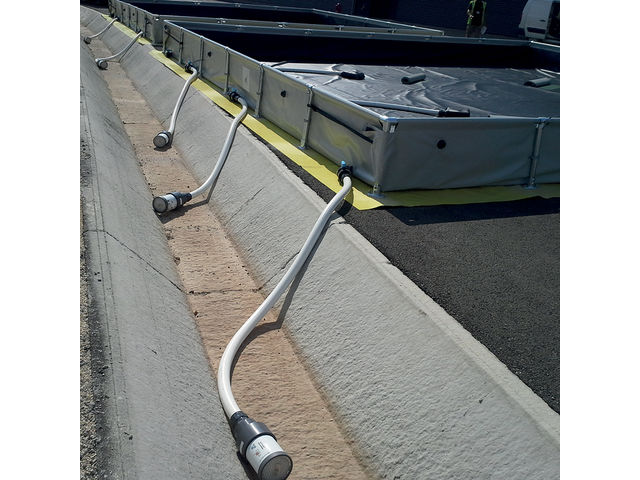

Filtration of hydrocarbon-polluted rainwater in the containment bunds under electrical transformers.

Description:
Filtration of hydrocarbon-polluted rainwater in the containment bunds under electrical transformers. Filters that guarantee contamination level of discharged rainwater <1 mg or 5 mg per litre depending on the model. New range: cheaper, more efficient, the widest range on the market.

Three additional functions for containment bunds:

Continuous disposal of rainwater
Hydrocarbon absorption: water contamination at filter outlet < 5 mg
Instantaneous shut-off in the event of an abundant hydrocarbon leak

Design

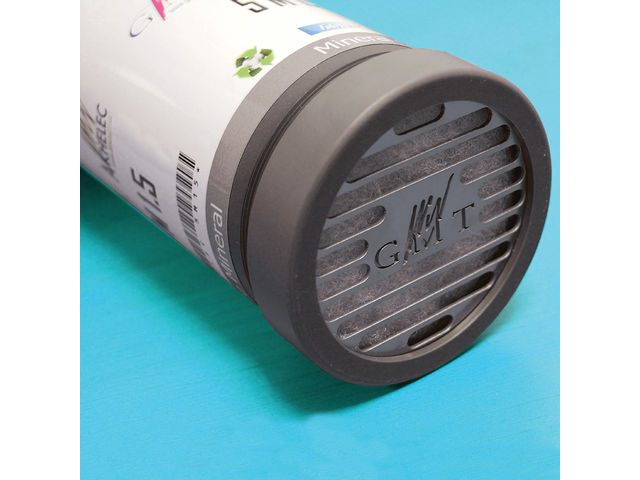

This system, designed to filter hydrocarbon-polluted rainwater, works by gravity and is designed and assembled in Europe. It comprises an oleophilic and hydrophobic polymer that permanently absorbs the hydrocarbons.

In the event of an oil leak, this polymer reacts and forms a plug, thereby preventing any liquid from leaking into the environment.

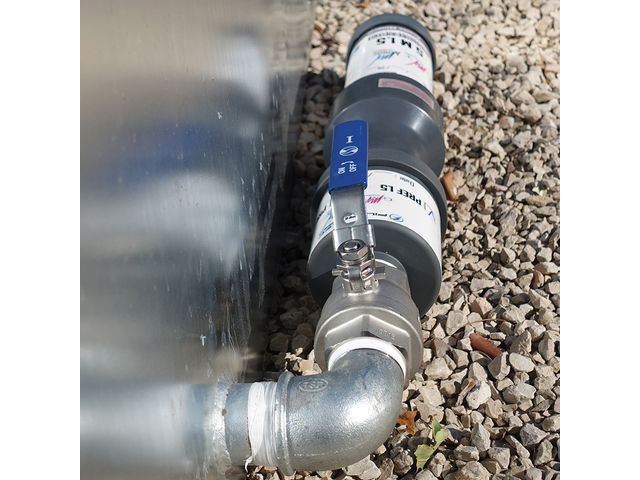

An external pre-filter is needed to reduce the risk of premature clogging of the filter caused by dust and sediment contained in the hydrocarbon-polluted water, as well as a safety siphon.
