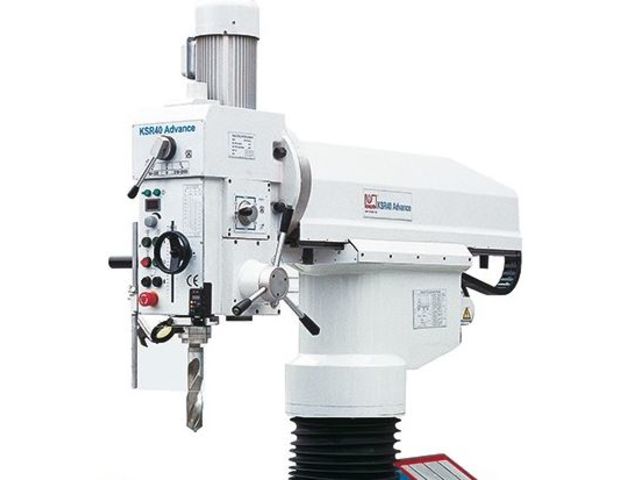

Rapid Radial Drill Press - KSR 40 Advance

Radial drill

Vote

“ Linear guides for flexible handling and maximum rigidity ”

Ask for a quote

Presentation

infinitely variable spindle speed with digital display and a digital drilling depth indicator provide extra convenience for the operator
powerful machine for drilling, tapping, countersinking and boring
large travel ranges and many different machining stations provide maximum setup and machining possibilities
extremely sturdy construction ensures high accuracy and reliability
quick and precise tool positioning: hydraulic clamping is released by the push of a button, head easily swivels forward, backward and horizontally
motorized up and down movement of drill head
height can be adjusted without changing the drilling position
provides great flexibility when machining large parts
drill head swivels ±90 degrees
automatic feed with depth stop trigger
thick-walled column and large dimensions of all components ensure maximum accuracy
Digital boring depth display

Technical features

Upper beam travel : 590 mm Tapping capacity, steel : M 30 Throat : 950 mm Spindle nose-to-table surface distance : 780 mm Column stroke : 380 mm Quill stroke : 200 mm Head swivel range : ± 90° Column diameter : 220 mm Table set up area : 1.200x505 mm Spindle speed (infinitely variable) : 50 - 2.000 rpm
