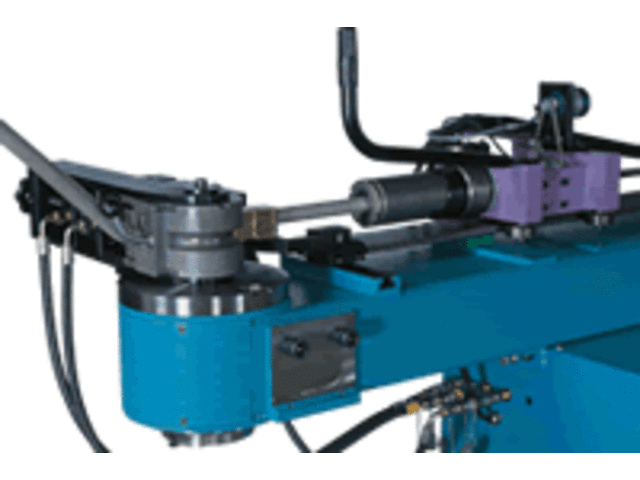

RB 42 FK Dig

Ask for a quote

Presentation

Bending capacity

St37 ø 42 x 2 mm
Al/Cu ø 48 mm
Short description
Automatic bending axis electronically controlled (CNC)
Memory for programs
The linear feeding and rotation of the tube is manually performed by the operator. When the digital display indicates that the part has reached it programmed linear position, the plane of bend unit is automatically held, permitting the operator to rotate the part to the programmed plane angle, at which point depressing the foot switch will start the bending process
Ideal for tubes having normal to complicated geometric forms
Ideal for small or large production amounts
for shift production
Free form protruding bending head
Left and right bending
