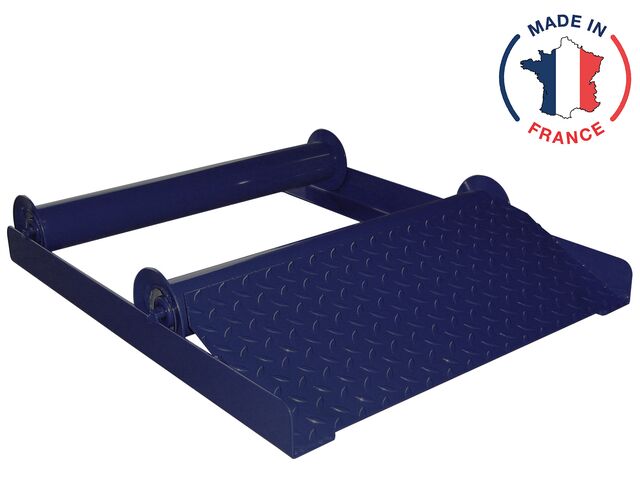

Roller unwinder

0T200


The classic one with a low price
- Mechanical welded monoblock frame with integrated ramp
- 2 fixed rolls, welded to the frame (Ø 70 mm, length 540 mm)
- Welded cups on roller edges to hold the cable drum
- Max width of the cable drum: 520 mm

Code EDR0200


0T800 1T200


- Mechanical welded monoblock frame with integrated ramp
- 2 fixed rolls, welded to the frame (Ø 70 mm)
- Waterproof bearings
- Welded cups on roller edges to hold the cable drum
- System for locking the front roller for easing the unloading operations
- Max width of the cable drum 0T800 : 575 mm
- Max width of the cable drum 1T200 : 770 mm

Codes EDR0800 - EDR1T20



5 à 7 T


The cable drum unwider is made of 2 shoes which are mechanically welded and linked by 2 square tubes, secured by split pins.

Each shoe is equiped with:
- 2 rolls, heavy load, Ø 89 mm, length 235 mm. The front roller is stationery, the rear roller can be adjusted acording to the diameter of the cable drum
- System for locking the front roller for easing the unloading operations
- Removable ramp
- Guide roller at side
- Carrying handle
- Max width of the cable drum: 1350 mm

Code OBDR5070

7 à 10 T


With hydraulic lifting

The cable drum unwider is made of 2 frames which are mechanically welded.
Each frame is fitted with 2 rolls, heavy load, Ø 89 mm, length 235 mm, each one secured in a shoe.
The set (shoes + rear roller) can be removable to allow the setting of the drum; once it's done, it is later out back in place, the closest to the drum and secured by pins.
The set (shoes + front roller), is pushed by an hydraulic jack with a 10 tons force ( manual pump action) and this generates the lifting of the drum from the ground.
Guide roller at side onto the rear roll.
Max Cable drum width nearly endless.

Code OBDR7010

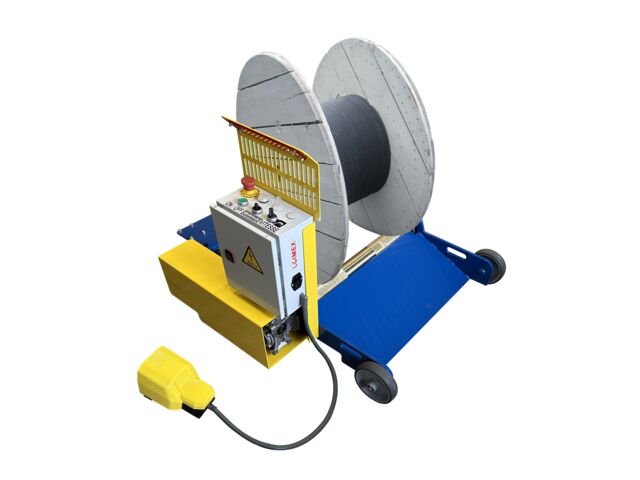

Motorized roller unwinder CDV-100M


For cable drums :
- diameter 300 à 1.000mm
- maximum Width 650 mm
- maximum weight 500 kg

Platform equipped with 4 wheels, 2 of which have brakes.
Very slow rotation speed, to be defined according to the application, controlled by potentiometer.
Dead man pedal.
Motor 0,75 kW
Voltage : 220V II / 50-60Hz
Dimensions : 800 x 900 x 300 mm
Weight : 100 kg

Code OL-CDV100M
