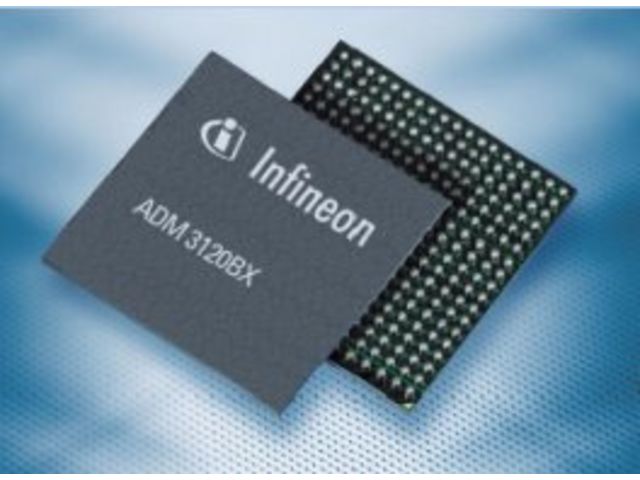

Router ADM3120BX

The ADM3120BX from Infineon is a high performance, integrated and highly flexible SoC (System-on-a-Chip) network controller.
Internally, the ADM3120BX from Infineon consists of a high performance (227 MIPS) embedded MIPS CPU, an embedded switch engine, a five port 10/100M PHY and interfaces for UART, SDRAM and Flash. The ADM3120BX enables the haring of IP-based broadband services throughout the home and office using wired and wireless computers, entertainment equipment, printers and other intelligent devices.

The application consists of a SOHO/ SME gateway, NAT router, single-/ multiband WAN access point as well as wired and wireless ATA.

Feature List:

* 175 MHz/227 MIPS 4Kc CPU with embedded cache, 8K-byte I-cache and 8K D-cache
* Embedded memory management unit (MMU) 32-entry TLB (Translation Lookaside Buffer) with 16 organized entry pairs
* IEEE 802.3 Fast Ethernet 5 auto-MDIX (auto-crossover) twisted paired LAN interfaces with embedded 10/100M PHY and 1 MII interface
* UART, SDRAM and Flash interfaces
* Flexible WAN port selection & embedded switch engine and data buffer/ Address-look-up table
