Safety Relief Valve ULTRAVENT 6

Safety valve

Vote

“ Safety Relief Valve for venting excess pressure from receivers, pipelines and other equipment, 5 up to 500 mbar - spring-loaded, direct-acting safety relief valve - flow-optimised valve system for maximum blow-off capacity - every safety relief valve 100% tested - TÜV-certification of pressure setting - tested according to DIN EN ISO 4126-1 - can also be used as a control valve or as a vacuum breaker ”

Ask for a quote

Presentation

Spring loaded, direct acting safety relief valve, optionally based on DIN EN ISO 4126-1, for venting excess pressure from receivers, pipelines and other equipment. Very compact, safe and reliable. Every safety relief valve 100% tested.

Benefits:

exact, individually adjustable opening pressure from 5 up to 500 mbar
much smaller than previous designs
high blow-off volume flow
reliability tested over 100 000 cycles
G 1/8 or 1/8" NPT threads
pressure rating PN10
free of oil and grease
can be used as a control valve
can also be used as a vacuum breaker

Options:

tested according to DIN EN ISO 4126-1
100 µm filter in the gas inlet (1.4301)
strainer at outlet 100 µm (1.4301) prevents external contamination
TÜV-certification of pressure setting

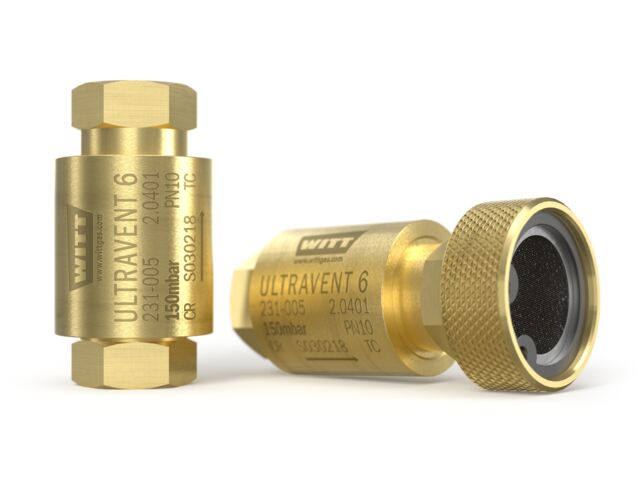

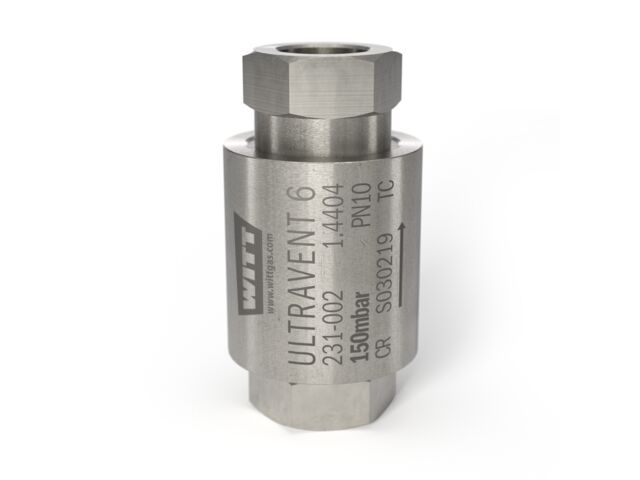

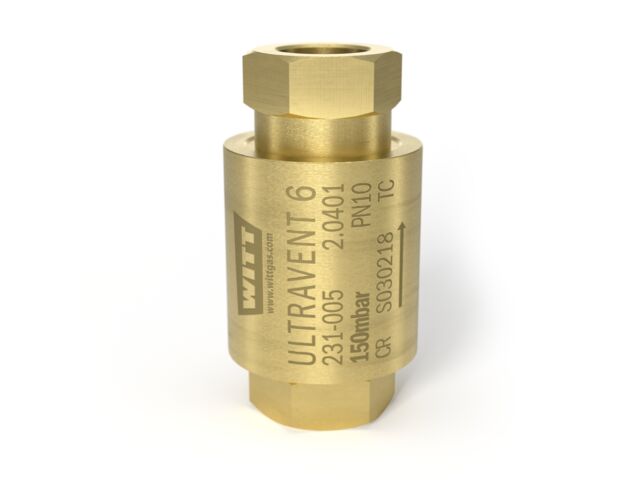

available in brass or stainless steel (ES)
temperature: -30 - 100 °C (PEEK – valve disc, seals NBR, CR)

Approvals:

Company certified according to ISO 9001 and PED 2014/68/EU Module H. Designed for Oxygen Service in accordance with EIGA 13/20 and CGA G-4.4: Oxygen Pipeline and Piping Systems. Cleaned for Oxygen Service in accordance with EIGA 33/18 and CGA G-4.1: Cleaning of Equipment for Oxygen Service

Other models, options and accessories available upon request.

Technical features

exact, individually adjustable opening pressure from 5 up to 500 mbar high blow-off volume flow reliability tested over 100 000 cycles G 1/8 or 1/8 pressure rating PN10 free of oil and grease can be used as a control valve can also be used as a vacuum breaker TÜV-certification of pressure setting
