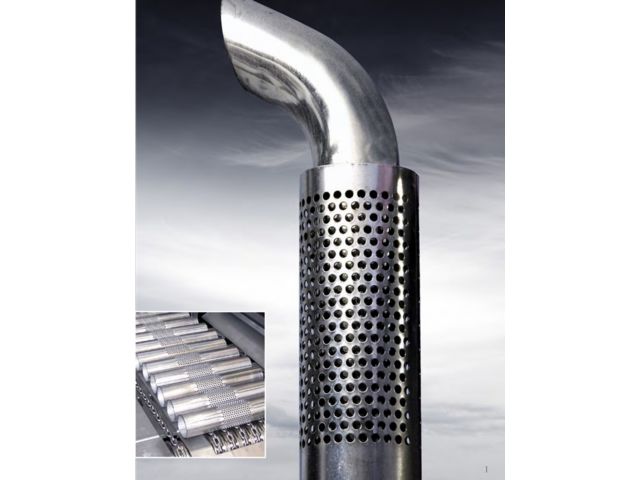

erforated tubes are often used in the automobile industry, especially in the construction of exhausts. And in the manufacture of racking systems, tube with exact spacing between holes are absolutely necessary.
In the manufacture of perforated tubes, there are of course deviations in the intervals in punched ranges. High process costs in manual fixed length re-cutting are the result.
The RASACUT OC cuts perforated tubes fully automatically and ejects defective perforation intervals in the output material by itself. It reduces the high expenditures for work and material for cutting output lengths of pre-perforated tubes drastically.

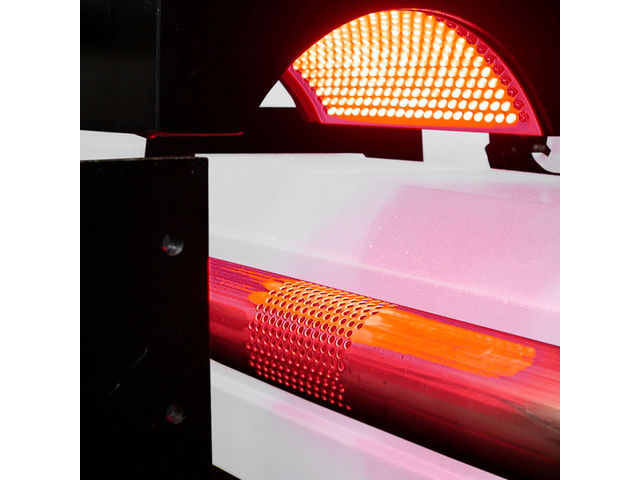

tubes from a bundle of tubes are automatically separated and transported to the saw with a gripper. This highly precise feed is controlled by an optical system that automatically measures the distances between punched holes and makes sure that the cuts between the punch point and the end of the tube are always within the prescribed tolerances.
Sections in the output material in which the punching intervals are impermissibly large relative to each other are removed out and ejected. The result is drastically reduced process costs through increased output on the one hand and discontinuation of 100% control after the fact as well as less reject material.
Automatic recognition and positioning of the weld seam is possible as an option.
Advantages of the RASACUT OC
-
Accurate sawing of perforated tubes
-
Fully automatic measuring of perforation position
-
Perforation patterns outside of determined tolerance are automatically separated from the fixed length
-
Safe transfer of fixed lengths due to pick & place system
