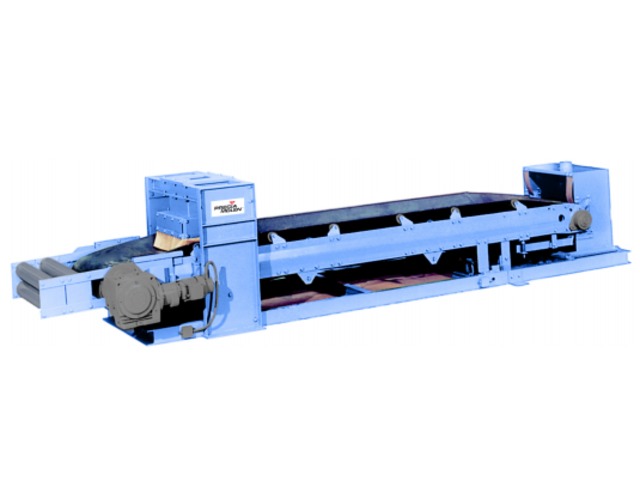

The model of belt conveyor BT comprises an entirely weighed belt conveyor connected to a supporting frame by two pivot points situated along the axis of the product supply line, with one pivot point mounted on 1 or 2 load cells.
The model BT is used where the installation of a belt scale is not feasible, e.g. where the total conveyor length is less than 6 metres.
Low capacity series for belt widths from 400 to 1,000 mm
High capacity series for belt widths from 650 to 1,600 mm
Maximum throughput: 500 m3/h
Maximum particle size: 40 mm
Accuracy:
± 1 to 2 % for conveyor length of 1,800 mm
± 0,5 to 1 % for conveyor length of 3,000 mm
± 0,2 to 0,5 % for conveyor length of 4,500 mm
Available for trade use (Class 1)
Models BT require independent feed and discharge conveying systems.
