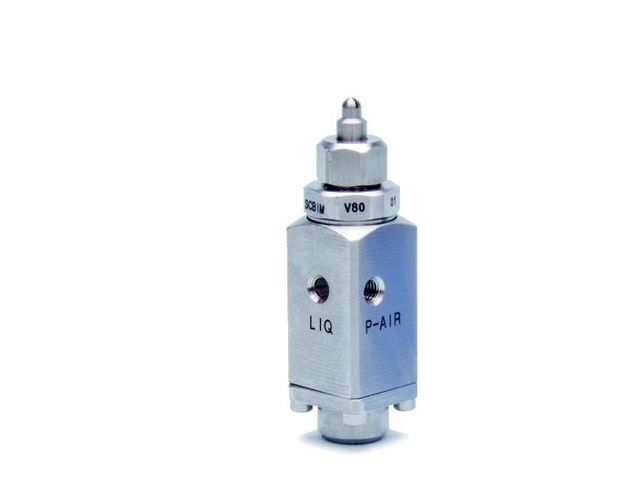

SCBIMV series – Ultra-compact size, flat spray nozzle IKEUCHI EUROPE B.V.

SCBIMV series – Ultra-compact size, flat spray nozzle

Pneumatic nozzles

Vote

Ask for a quote Receive Documentation Contact the supplier


Features

  • Flat spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 100 μm or less.**
  • Ultra-compact size. About 42 mm in total length including control adaptor.
  • Features large turn-down ratio under liquid pressures of 0.1–0.3 MPa (ca. 1 bar – 3 bar).
  • Produces two different spray distributions: uniform spray distribution throughout spray pattern area (when spraying at a low air-water ratio), or a mountain-shaped distribution having gradually tapered edges (at a high air-water ratio).
  • Spray angle of 110 °, 80 °, or 45 °.*
  • Capable of spraying smallest flow rate among all of our pneumatic spray nozzles.
  • Spray ON/OFF can be regulated by switching the pilot air ON/OFF (adaptor type SP) or by turning compressed air ON/OFF (adaptor type SN).

Pipe conn. : size M3 depth 2.5 (Air inlet/pilot air), M3 depth 3 (Liquid inlet) Spray angle : 110°, 80°, or 45° Spray capacity : 0.25 - 4.0 ℓ/hr Supply air type : Compressed air Liquid feeding system : Liquid pressure Mean droplet diameter : 20 - 100 μm Air consumption : 2.6 - 12.4 ℓ/min, Normal Air pressure : 0.2 - 0.4 MPa (ca. 2 bar - 4 bar) Free passage diameter : 0.1 - 0.3 mm (Nozzle orifice)
Download the complete technical features

Printing Automative Electronic Dust control in factory Iron and steel making
