Screw-distributor blocks

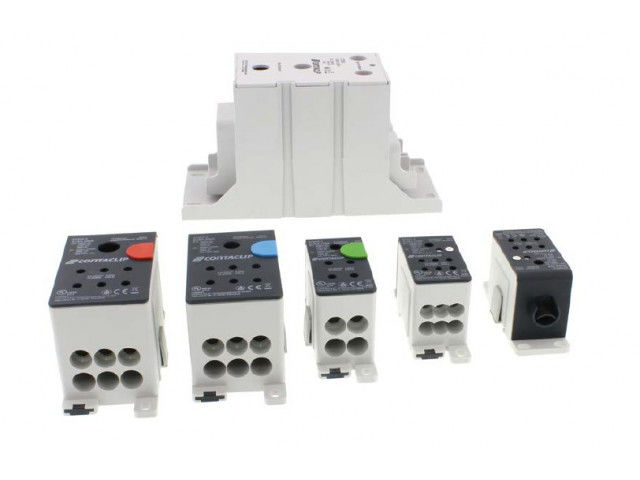

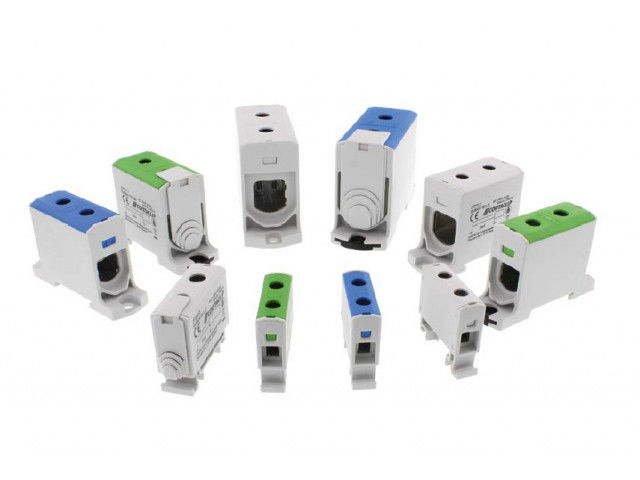

Screw-distributor blocks SVBKA | SVBA | SVB The screw-distribution blocks make it possible to distribute potential and power in a compact space without any additional accessories. The distribution blocks are suitable for aluminum and copper cables from 1.5 to 500 mm². They can be used in installation and distribution board construction and also in controller construction for machinery. The blocks SVBKA | SVBA | SVB are mounted by snapping them on to TS 35 DIN rails. They can also be attached directly to a mounting plate using the screw flange located on the side of the housing. The Advantages - Easy to work with - Space-saving design - High short-circuit resistance rating - Easy to align side-by-side with connection Clip (not for the SVBA 1100A) - Finger safety (according to IP20) is ensured by safety gate for each cross-section

Download the complete technical features
  • Product description: Screw-type distribution block
  • Colour: Light grey
  • Length (mm): 66mm to 96mm
  • Width (mm): 27mm to 98mm
  • Height (mm): 43mm to 50mm
  • Height TS 35/7,5: 46mm to 56mm
  • Flammability classification: UL 94 V-0
  • Temperature range: -40°C to +120°C
  • Rated current CU: 80 A to 425 A
  • Rated current AL: 63 A to 380 A
