Self-cleaning filter for liquid sample | TORNADO 602

Other hydraulic filters

“ • Helps preserve sample integrity • Analyzer protection • Quick and easy to install and maintain • Quick and easy element inspection • Economical ”

Ask for a quote

Presentation

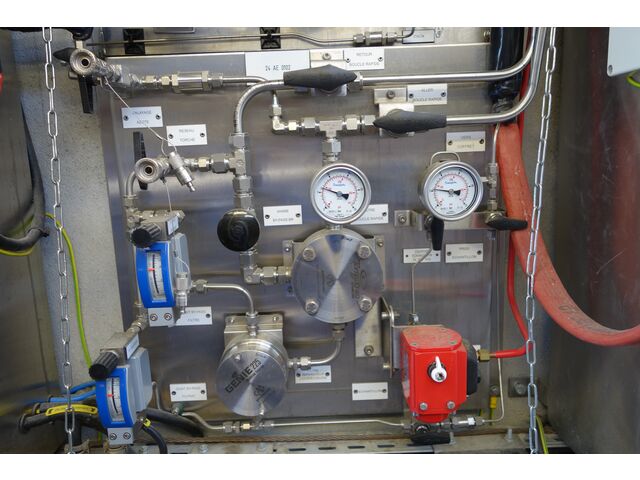

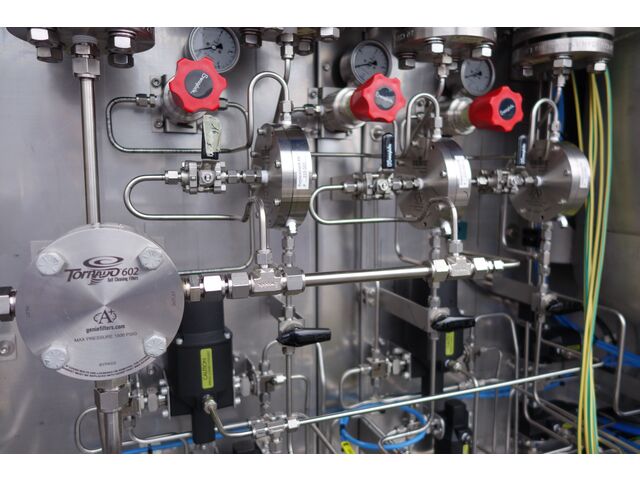

The Tornado Model 602 is a continuously self-cleaning filter that protects analyzers from particulate in liquid samples. In normal operation, components of interest flow through the Tornado’s element to the analyzer. Contaminants are shed by the element and removed through the Bypass port.

The G.U.T.S.™ (Genie® Ultimate Thermoplastic Seal) gasket is an excellent alternative to expensive elastomers. It withstands radical temperature cycles without leaks due to its ability to maintain a bubble-tight seal even when thermocycled repeatedly from 0-300 °F.
The multi-layer filter media consists of the support screen and flow screen. This results in more efficiency and easier installation and handling. The elements are self-cleaned by the flow of sample across them.

The self-cleaning action is best when the bypass flow rate is maximized, the outlet flow rate minimized, and variations in element rating are tried.

Technical features

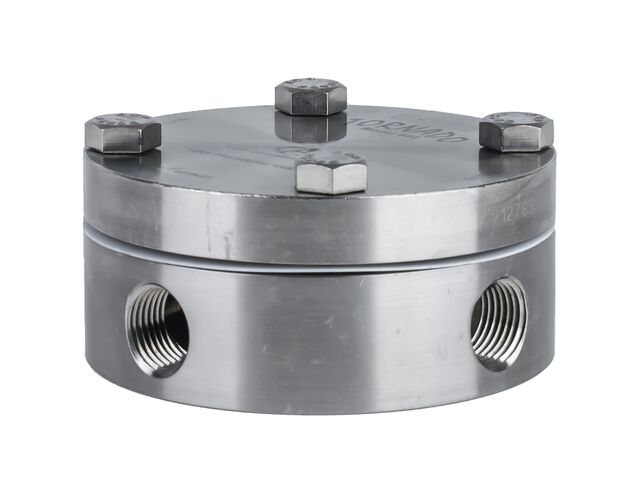

Self-cleaning tornado action Single element, multi-layer stainless steel filter media All connection ports on the housing Sample ports located at 90º angles G.U.T.S.™ seal Back mounting
