Semi-automatic band saw : SH-13032 COSEN EMEA

Semi-automatic band saw : SH-13032

Semi-automatic band saw

Vote

Ask for a quote Receive Documentation Contact the supplier

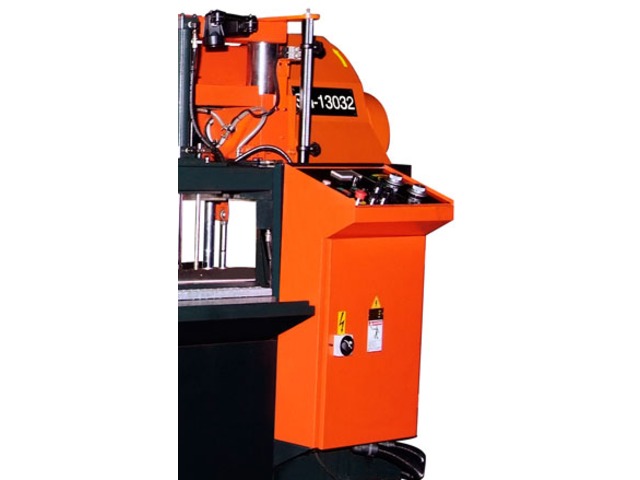

Semi-Automatic Horizontal Greating-Cutting Band Saw

Grating Cutting. ．With a cutting capacity of 1300 mm (W) x 310 mm (H) and gantry-type structure, SH-13032 is specially designed to cut drain covers, grating, hollow plates, and wide plates of metal or nonmetal material. ．

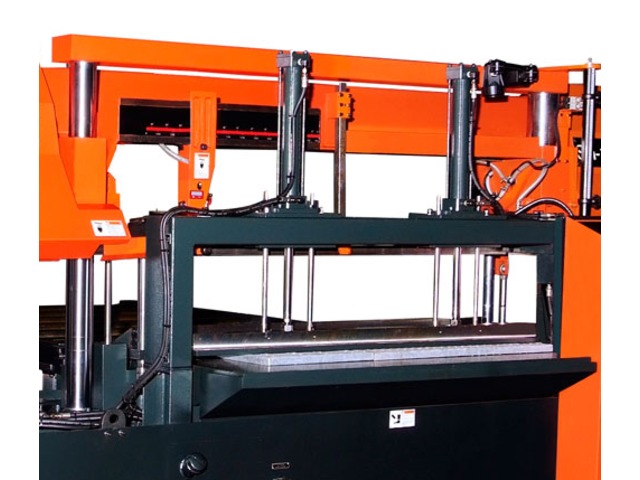

SH-13032 comes with two sets of full stroke hydraulic top clamps. One before and the other behind the blade together hold the material tightly, enabling smooth and stable cutting even for wide grates and plates.．

The rugged saw frame travels vertically through two large precision-ground column.The cross link connecting the two columnsforms an archway design, giving it sound structural strength.

Capacity Round : 310 mm (12.2") Capacity Square : 310 mm (12.2") Capacity Rectangle (HxW) : 310 x 1300 mm (12.2"x51") Blade Speed : 15-80 m/min (50-264 fpm) Blade Size (LxWxT) : 6200x34x1.1 (244"x1.3"x0.042") Blade Motor : 5HP (3.75kW) Hydraulic Motor : 1HP (0.75kW) Coolant Motor : 1/8HP (0.1kW) Workbed Height : 700 mm (27.6") Gross Weight : 15000 kgs (33000 lbs)
