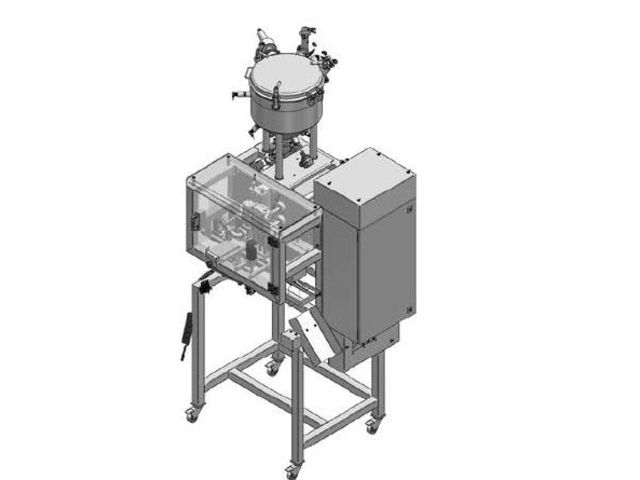

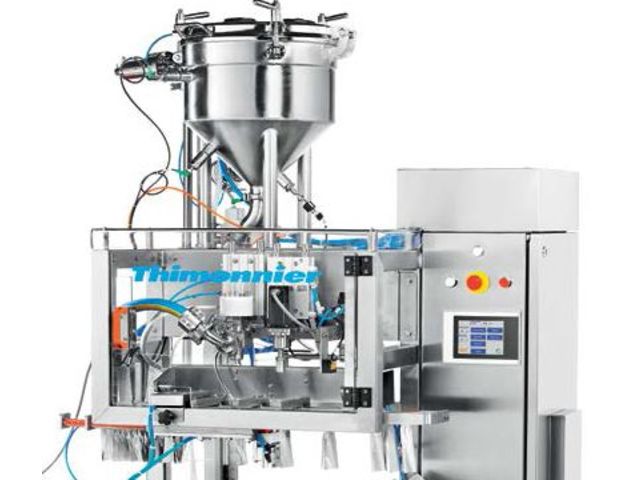

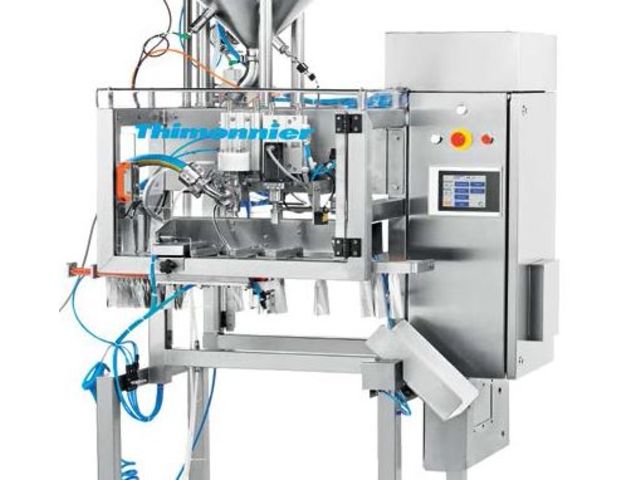

Machine designed for filling premade Doypack® with liquids and viscous products through weldspouts on the top on the corner of the pouch, and screwing of the temper-evident spout.
STANDARD EQUIPMENT :
Frame in Stainless steel
Easy cleaning of production enclosure:
No contact between delicate parts and the filled product
Access through transparent doors to the workstations
with integrated security system
Pouches transfer and screwing controlled by servo motors
Control by PLC
Recording and storage of 100 programs
Food industry
Fruit puree, baby food, chestnut cream, milk and dairy products, fruit and nectar juices, soups and sauces, edible oil, liquid cheese, honey …
Chemical / detergent industry
Concentrated détergents, liquids, coolants, distilled water, paint, motor oil,
windscreen washer fluid …
OPTIONS
Ink jet date coding
Neutral gas or steam flushing
Dosing of liquid and viscous products (pumps, electromagnetic
or mass flowmeters)
Exit conveyor
Ultra-clean machine (laminar flow, steam sterilisation...)
Up to 10/12 pouches/minPower supply: 230V Tri - 50 Hz - 2 KVANetwork pressure 7 to 9 barsInput pressure : 6 bars – Q = 10 Nm3 /heureOUTPUT: UP TO 10/12 POUCHES/ MINPOUCHES VOLUME: FROM 50 ML TO 1 L
