Sensor systems for LED tests of function, color and intensity | colorCONTROL MFA

“ Multi-channel color recognition system High measuring rate up to 100 Hz Simultaneous monitoring of up to 28 test objects ”

Ask for a quote

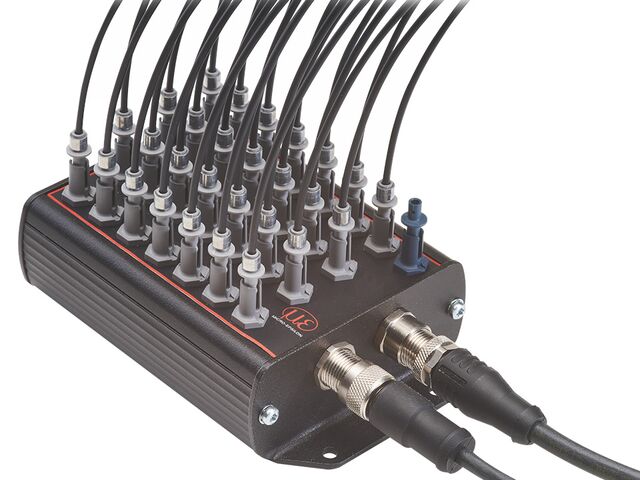

The colorCONTROL MFA is used for flexible color inspections and intensity testing of LEDs, displays and colored objects. The flexible positioning of the sensors in relation to the objects, as well as their high repeatability, measuring rates and dynamics are particularly favorable. One colorCONTROL MFA monitors up to 28 test objects simultaneously.

Sensors

Operating the colorSENSOR MFA controller requires sensors that are used on the measuring point. The sensors reliably detect small light spots from 3 mm and can be individually combined depending on the measurement task. The high-quality receiver sensors with plastic fiber optics are particularly characterized by their small installation dimensions. This enables highly accurate testing at different points for individually arranged test specimens. The sensor portfolio covers a wide range of working distances and spot sizes. Other versions in different lengths and temperature ranges are available as options.

Technical features

Multi-channel color recognition system 28 measurement channels Repeatability: xy < ± 0.000025 High measuring rate up to 100 Hz High dynamic range of 1 ... 50,000 lux Simultaneous monitoring of up to 28 test objects Color inspection in XYZ, xyY, Luv, uvl and RGB color spaces Output of the dominant wavelength (λdom) and color temperature (CCT) Exchangeable MFS receiver sensors Outputs: USB / RS422 / RS232
