SETOJet series – Clog-resistant fine fog full cone nozzle IKEUCHI EUROPE B.V.

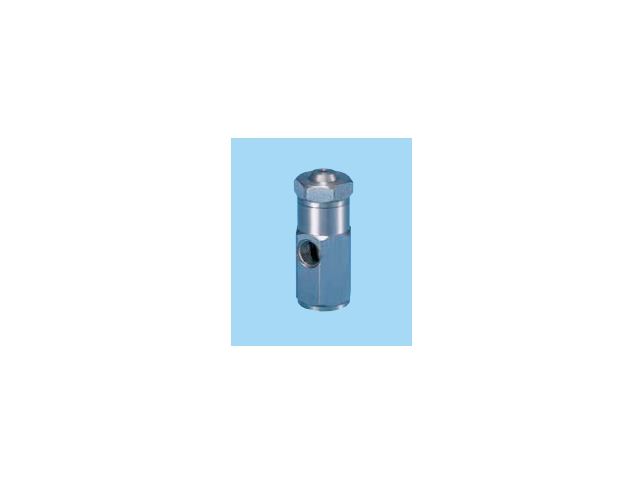

SETOJet series – Clog-resistant fine fog full cone nozzle

Vote

Ask for a quote Receive Documentation Contact the supplier


Features
  • Full cone spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 60 μm or less (*3).
  • Clog-resistant design. Optimal for spraying viscous liquids.
  • Liquid siphon feed type (liquid pressure device is not required). Use with the liquid pressure device is also possible.

Applications
  • Spraying: Mold release agent, deodorant, oil, surface treatment agent, rust preventive, lubricant, honey, glaze, insecticide, aqueous urea, slurry, other viscous liquid

Pipe conn. size Rc 1/8 Spray capacity 2.0-111 ℓ/hr Supply air type Compressed air Liquid feeding system Liquid pressure, Liquid siphon Mean droplet diameter 20-60 μm Air consumption 38-290 ℓ/min, Normal Air pressure 0.3 MPa (ca. 3 bar) Free passage diameter 0.5-2.0 mm
Download the complete technical features
