Presentation

The ATEX/EX certified system is modular and can be easily configured to meet your job and budget requirements.
Thanks to its intuitive operation, ergonomic design and the many features, OPTALIGN smart EX remains a sought-after measurement system in the maintenance of rotating machinery such as pumps, motors, gearboxes and compressors.

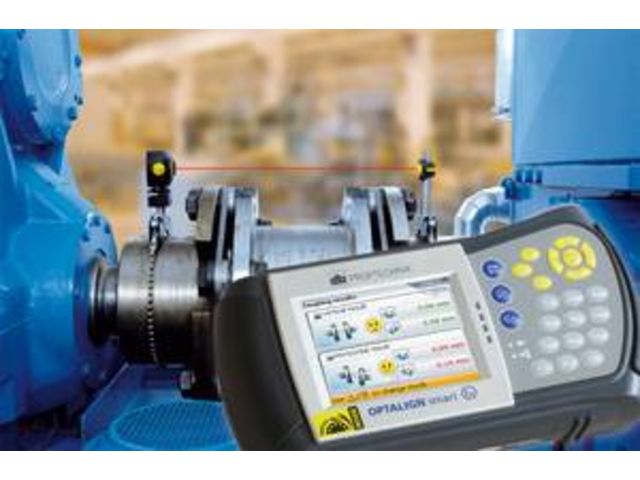

Vertical and horizontal machine corrections are monitored live on the screen.

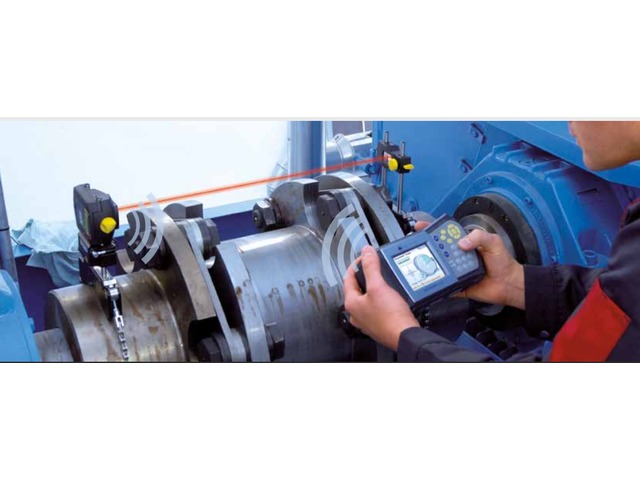

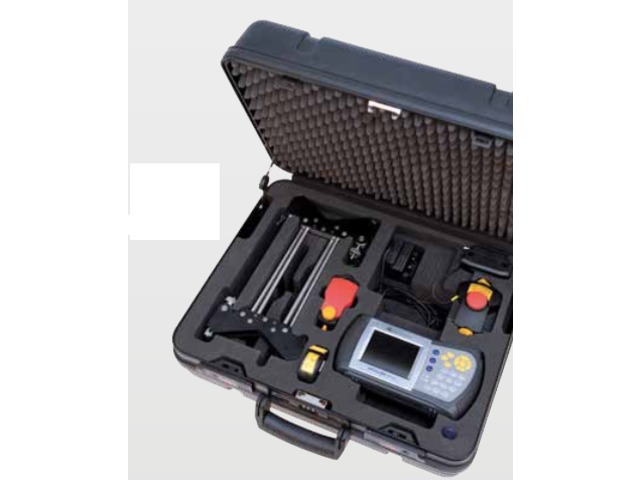

OPTALIGN smart EX is delivered in a robust and valuable light-aluminum case which is suitable for hazardous areas. PDF reports can be generated and directly saved from the system onto a USB stick. The optional wireless Bluetooth module is certified ATEX/Ex/IECEx. It allows wireless data transmission from the sensor to the computer. This is a unique capability of PRUFTECHNIK alignment systems for hazardous areas.

Technical features

System and case fully ATEX / IECEX certified Alignment of horizontal, vertical and flange-mounted machines, coupled and uncoupled shafts Hundreds of positions are automatically measured during shaft rotation (SWEEP) Automatic evaluation of alignment condition with smiley symbols (TolCheck) and user-defined tolerances Live monitoring of horizontal and vertical machine corrections Save PDF measurement reports directly to a USB stick: no PC required. Wireless data transfer via Bluetooth module (optional).

Download the complete technical features
