Shuttle and automatic screen printing machine - LVM N 2-4 CUV-G

Shuttle and automatic screen printing machine - LVM N 2-4 CUV-G - LVM PRINTING MACHINE

Quote Shuttle and automatic screen printing machine - LVM N 2-4 CUV-G

Shuttle and automatic screen printing machine - LVM N 2-4 CUV-G LVM PRINTING MACHINE

Shuttle and automatic screen printing machine - LVM N 2-4 CUV-G

Digital printing

Vote

“ CNC Printing Machine (Universal) for glass articles Automatic loading and unloading on conveyor CE Machine in accordance with the EURO 2006 Machine Directive ”

Ask for a quote

Presentation

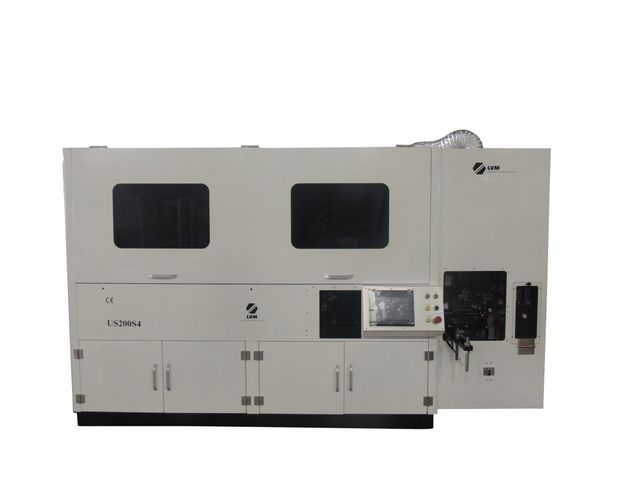

CNC Printing Machine (Universal) for glass articles

Automatic loading and unloading on conveyor

Integrated flaming and Silane treatment, servo driven rotation

Mechanical registration

UV Led or UV Electrode curing system mounted on a CNC axis to accompany the article while moving along therefore allowing it to dry between 2 colors - Time saving

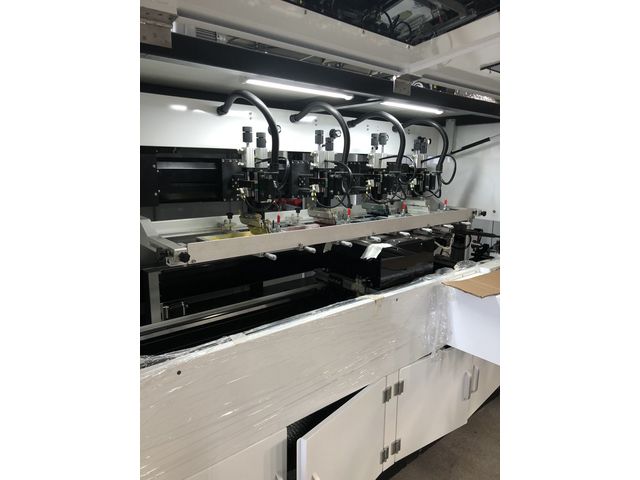

Servo driven printing heads - Right/Left movement, up and down and rotation of the article

A single tool to be expected - Quick and easy for the changes of production

CE Machine in accordance with the EURO 2006 Machine Directive

Technical features

Cadence 2 couleurs : 7/10 art/min Cadence 4 couleurs : 4/5 art/min Ø 25-90mm Printing lenght 250 mm - Stroke 300mm for 2 colors Printing lenght 200 mm - Stroke 250mm for 4 colors Printing height 150mm Height printing area 150mm - update 200mm Height of article 250mm Delivery Time: 5 month(s)

Download the complete technical features
