Single and double acting short stroke pneumatic cylinders - Series B

Compact pneumatic cylinder

Vote

“ ✔ Short stroke, compact ”

Ask for a quote

Presentation

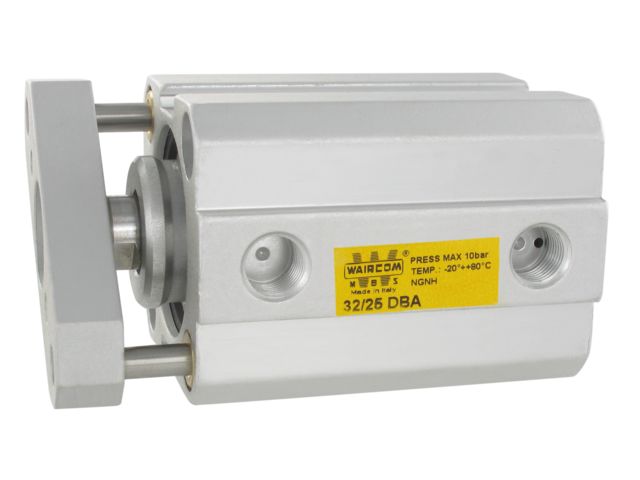

The short stroke pneumatic cylinders of the B series, marketed by SENGA, are short stroke cylinders and are mainly used for locking applications due to their compact design and easy mounting by means of fixing holes.

These cylinders are available in several versions: double-acting, single-acting with front spring, magnetic or not. On request, single-acting pneumatic cylinders with rear spring, through rod and anti-rotation device can be offered.

The B series is divided into 10 bores of different diameters: 12, 16, 20, 25, 32, 40, 50, 63, 80 and 100 mm.

> Tube: anodised aluminium extruded profile
> Piston: Ø 12 ÷ 32 = delrin
> 40 ÷ 100 = aluminium
> Rod: AISI 303 stainless steel
> Guide spout: bronze + PTFE
>Seals: Ø 12 ÷ 32 = NBR
> Ø 40 ÷ 100 = polyurethane (On request: VITON)
> Front head: Ø 12 ÷ 25 = brass Ø 32 ÷ 100 = aluminium
> Rear head: anodised aluminium
> Spring: AISI 303 stainless steel
> Damping washer: vulkollan

https://www.senga.fr/en/products-e-shop

Technical features

Medium: filtered compressed air, lubricated or not Connection: Ø 12 ÷ 20 = M5 Ø 25 ÷ 63 = G1/8 Ø 80 ÷ 100 = G1/4 Standard strokes: see tables in the data sheet Single and double acting Working temperature: between 0 °C and +80 °C Working pressure: between 1 bar and 10 bar

Usage scope

Industry Industrial pneumatics Single and double acting pneumatic cylinders Compressed air Industrial automation
