CHAMBRELAN GLISSIERES A BILLES et RAILS DE GUIDAGE INDUSTRIELS

Slide total extention Steel RA7R CHAMBRELAN GLISSIERES A BILLES et RAILS DE GUIDAGE INDUSTRIELS

Slide total extention Steel RA7R

Telescopic slides

Vote

“ Slides sold individually Total extension (+/-100%) Zinc plated cold drawn steel High load capacity Long lifespan Many optional devices Reliability RoHS ”
Ask for a quote Receive Documentation Contact the supplier

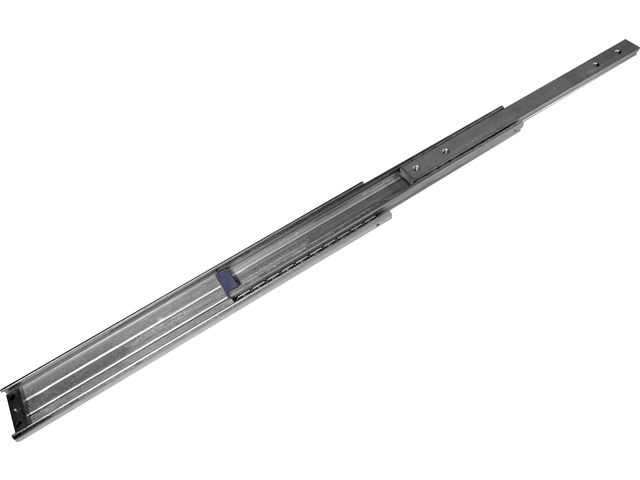

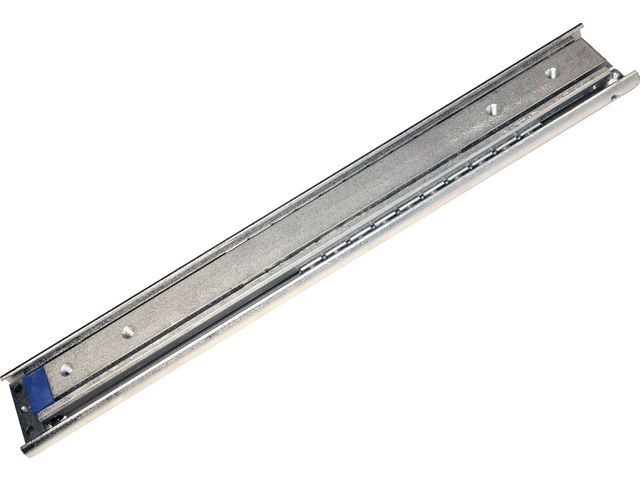

  • The RA7R is a reinforced zinc plated steel telescopic slide. Its 3 beams offer a full extension.


  • This slide is strong and encloses reinforced ball bearings that restricts twisting of the beams. It is designed for heavy loads.


  • It is possible to add devices such as lock opened (RA7V), lock closed (RA7F), lock opened and closed (RA7VF), sequential slide (RA7S)or double extension (RA7DD).


  • The standard lengths go from 250mm to 2000mm.
  • The loads per pair of slides in extented position go up to 255kg.

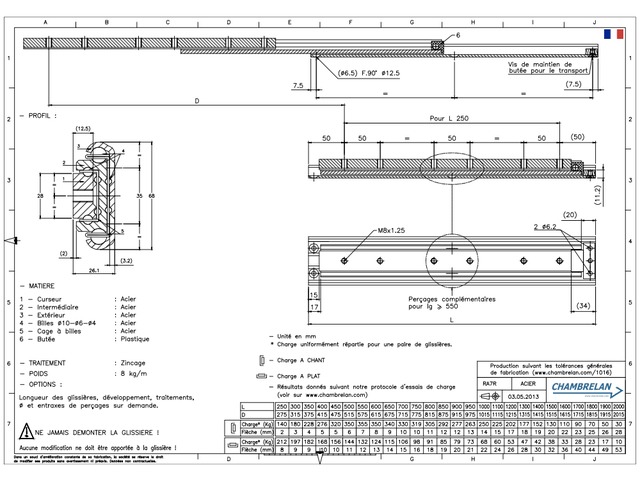

  • For more information, visit the page of the RA7R on our website, datasheet, CAD download : http://www.chambrelan.com/RA7R

Telescopic slide Total extension Steel The standard lengths go from 250mm to 2000mm. The loads per pair of slides in extented position go up to 255kg.

Transports : railway, automobile, aeronautics ... Special vehicle Industrial machines cover Industry
