Slider for 6mm slot aluminium profile SYSTEAL

Slider for 6mm slot aluminium profile

Assembly systems and components

Vote

Ask for a quote Receive Documentation Contact the supplier

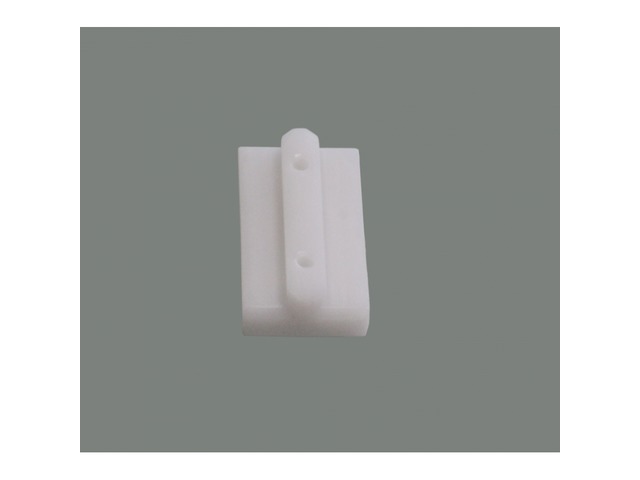

Slider for 6mm slot Aluminium Profile

One unit

Material : white polyacetal

Very good sliding properties.

2 x M3 threaded holes

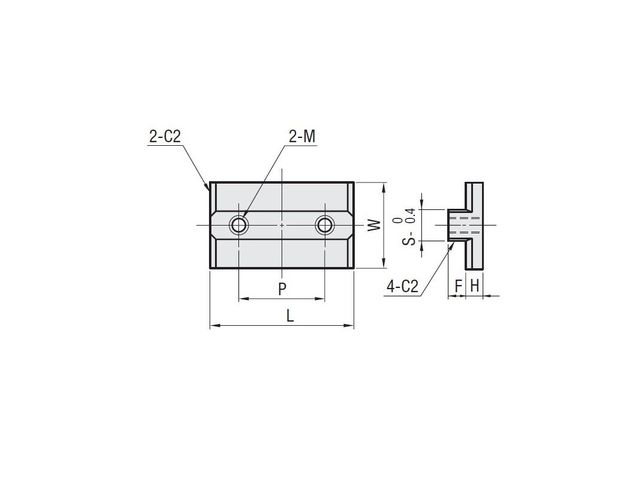

Dimensions in mm (see mechanical drawing) :

H=5

F=3

S=5.8

L=35

P=20

W=18

M=3

Screw threading: M3

Model : PAT-PROF6 Slote size (mm) : 6

Drop your rating on Slider for 6mm slot aluminium profile

Your answer to the rating from -

Slider for 6mm slot Aluminium Profile One unit Material : white polyacetal Very good sliding properties. 2 x M3 threaded holes. Quantity: 100
