CHAMBRELAN GLISSIERES A BILLES et RAILS DE GUIDAGE INDUSTRIELS

Slides partial extension Steel R71 CHAMBRELAN GLISSIERES A BILLES et RAILS DE GUIDAGE INDUSTRIELS

Slides partial extension Steel R71

Telescopic slides

Vote

“ Slides sold individually Partial extension (+/-70%) Cold drawn steel High load capacity Fluid movement Long lifespan Many optional devices Reliability RoHS ”
Ask for a quote Receive Documentation Contact the supplier

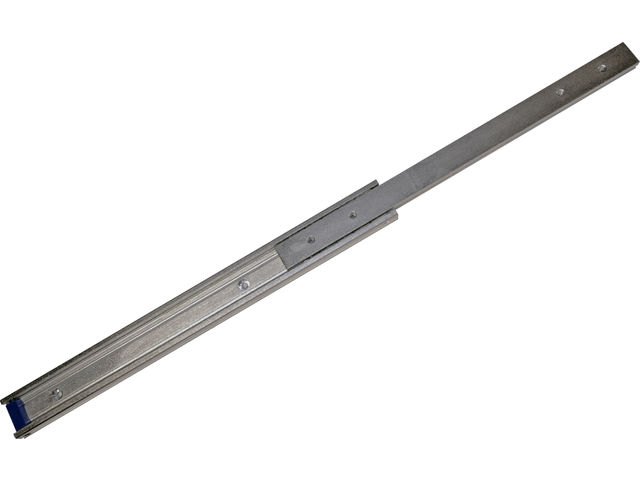

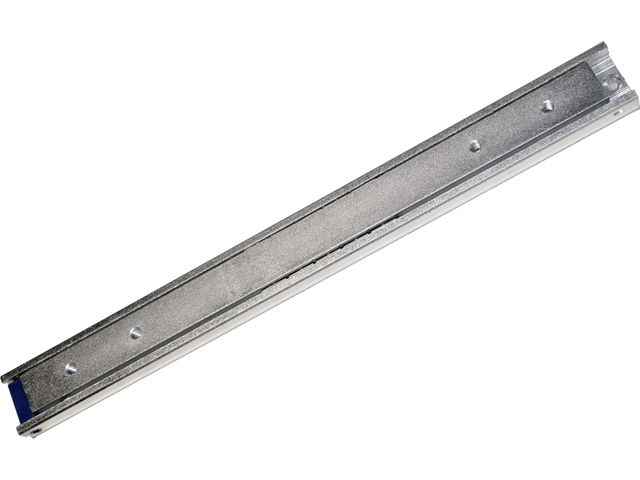

  • The R71 is a reinforced zinc plated steel telescopic slide. Its 2 beams offer a partial extension.


  • This slide is strong and encloses reinforced ball bearings that restricts twisting of the beams. It is designed for heavy loads.


  • It is possible to add devices such as lock opened (R71V), lock closed (R71F), lock opened and closed (R71VF) or double extension (R71DD).


  • The standard lengths go from 200mm to 1700mm.
  • The loads per pair of slides in extented position go up to 280kg.

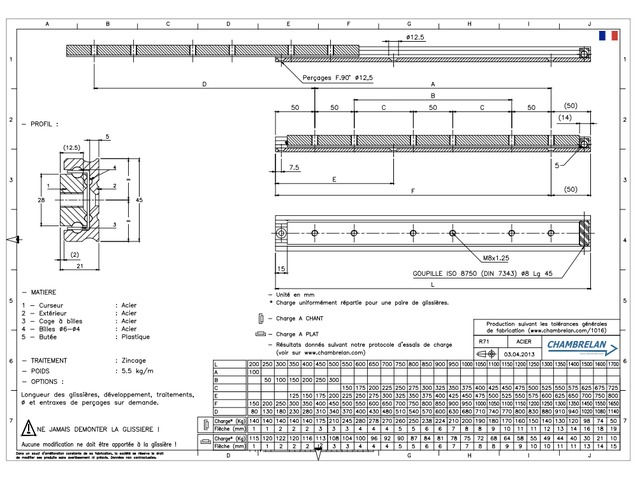

  • For more information, visit the page of the R71 on our website, datasheet, CAD download : http://www.chambrelan.com/R71



Telescopic slide Partial extension Steel The standard lengths go from 200mm to 1700mm. The loads per pair of slides in extented position go up to 280kg.

Transports : railway, automobile, aeronautics ... Special vehicles Industrial machines cover Industry
