Sliding gate pressure regulator type 8011 Schubert & Salzer Control Systems GmbH

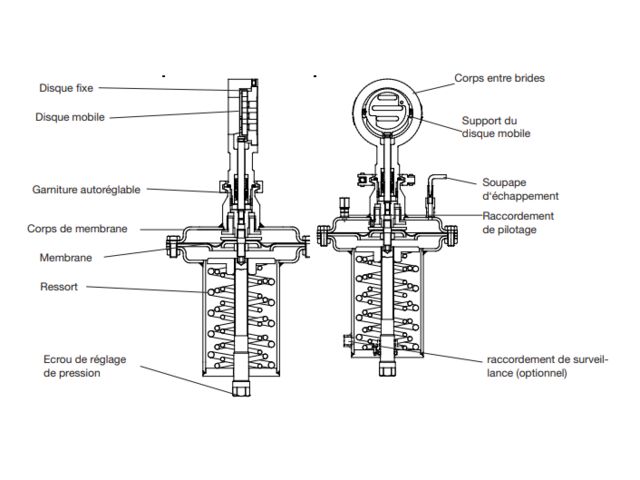

Sliding gate pressure regulator type 8011

Regulation valve

Vote

Ask for a quote Receive Documentation Contact the supplier

Product line GS3

The self-operated pressure regulator Type 8011 in a reinforced version with closed spring cover in the form of a pressure reducing valve (downstream pressure regulator) or an excess flow valve (upstream pressure regulator) is used in a wide range of process engineering control tasks. Media such as steam, liquids, gases, etc. can be excellently controlled without auxiliary energy.

  • Size:

    DN15 - DN150

  • Pressure:

    PN 10/40

    ANSI #150, #300

  • Material:

    Entirely stainless steel

    Body 1.4408

    Actuator 1.4571

    Diaphragm materials: CR, EPDM or FKM, optional with PTFE foil

  • Temperature:

    Media temperature: -30 °C up to 230 °C

    Special versions available on request.
