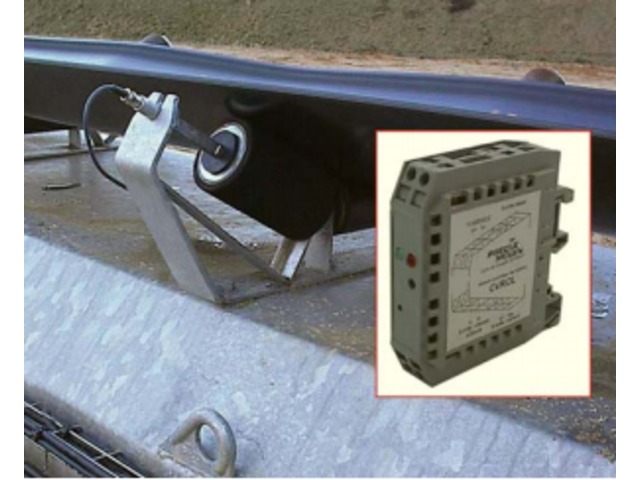

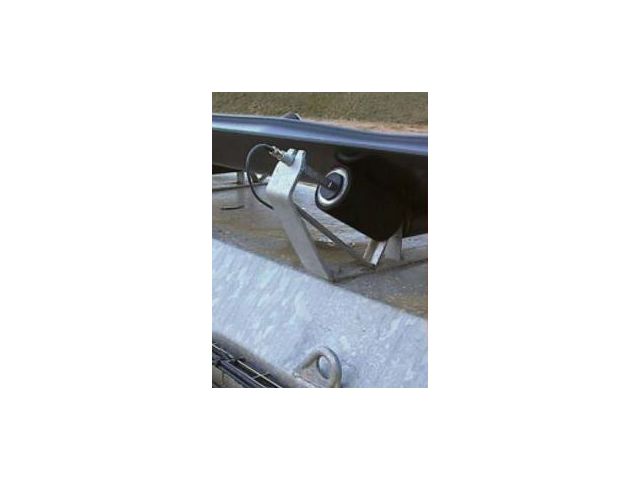

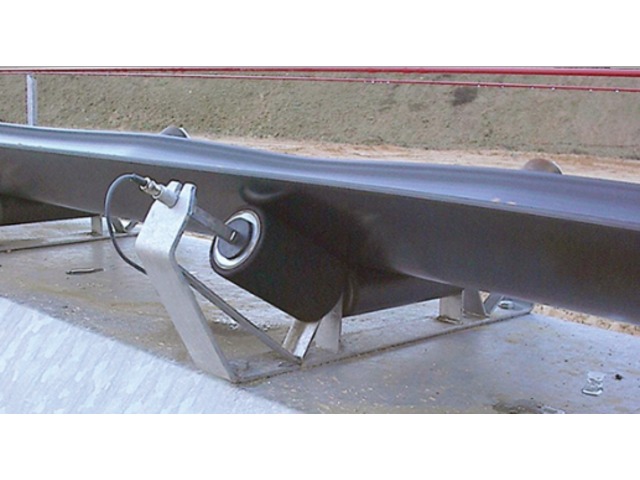

Roller with integrated sensor, driven by friction under the carrying strand of the belt
Easy assembly to replace a station roller for 89 mm diameter and length between 180 mm and 300 mm. Provides a specific support with mounting/adaptation between two stations for a different diameter or length
Outside diameter 105 mm
20/14 Hinge pin
Adaptation to the station by adjustment of the stop
Anti-slip coating
2-wire cell
Connection screwed onto plug-in connector
Speed sensor function
Outputs two pulses per turn, by integrated inductive sensor (2 wires)
Rotation control function
Outputs two pulses per turn, by integrated inductive sensor (2 wires)
Additional electronic module:
Dimensions 50 x 50 x 18 mm click fit onto DIN rail
Power supply 12 to 30 volts DC
Self-calibration
“Conveyor running” output on isolated static relay
4/20 mA analogue output: image of the measurement speed
