Stacking Frames Type S-31 for Euro pallet

Grid containers

“ Compatible with the EURO pallet (1,200 x 800 mm) / Two L-shaped frame halves form a single container / Secure stacking thanks to special retaining flanges ”

Ask for a quote

- Desired order quantity: 300 pieces

- Suitable for EURO pallet 1,200 x 800 mm
- External dimensions 1,200 x 800 mm are maintained by
special design and position of the catch trays

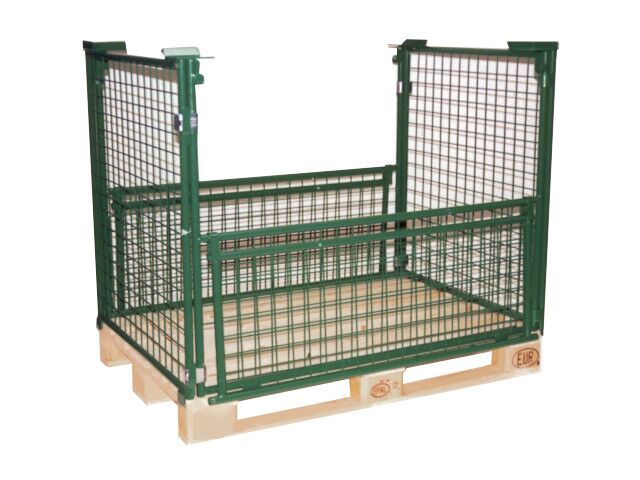

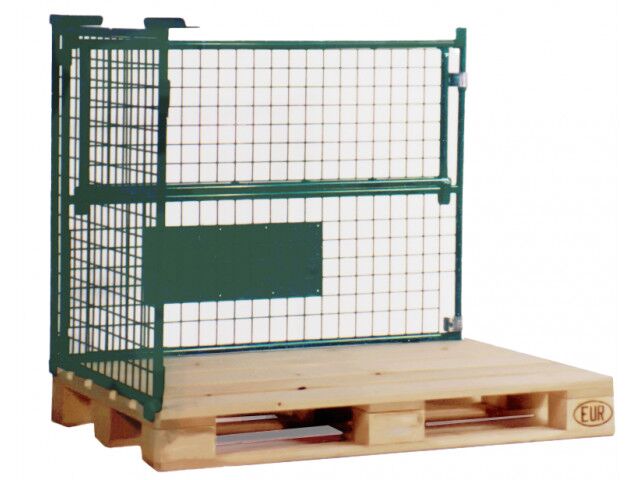

- Two L-shaped frame halves form one container
- A half-height flap on each long side enables easy loading and unloading
unloading, even when stacked
- Safe stacking thanks to special catch trays

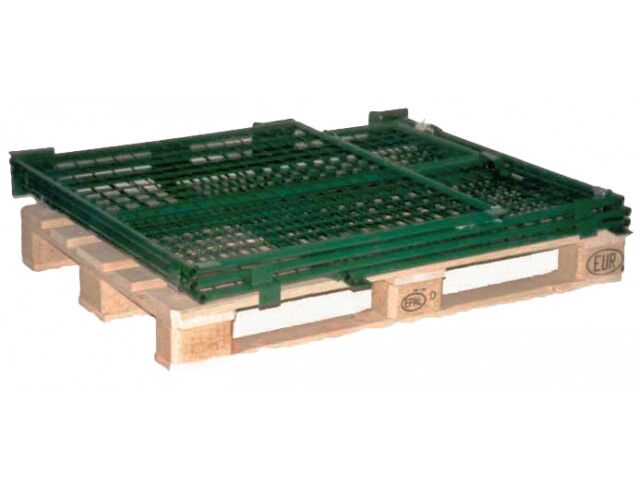

- Space-saving storage in empties

External dimensions (incl. pallet) in mm: 1,216 x 827 x 1,040
Internal dimensions (usable area) in mm: 1,173 x 765 x 866
Payload in kg: 500
Stacking storage: 1+3 compartment
Grid mesh in mm: 50 x 50
Surface finish: RAL 6002

Technical features

Fits the EURO pallet: 1,200 x 800 mm External dimensions (including pallet) in mm: 1,216 x 827 x 1,040 Internal dimensions (usable area) in mm: 1,173 x 765 x 866 Load capacity in kg: 500 Stackable: 1+3 high Mesh size in mm: 50 x 50 Finish: RAL 6002 Two L-shaped frame halves form a container
