STP-iX455 Turbomolecular pump ISO100K EDWARDS SAS

STP-iX455 Turbomolecular pump ISO100K

Vacuum pump

Vote

Ask for a quote Receive Documentation Contact the supplier

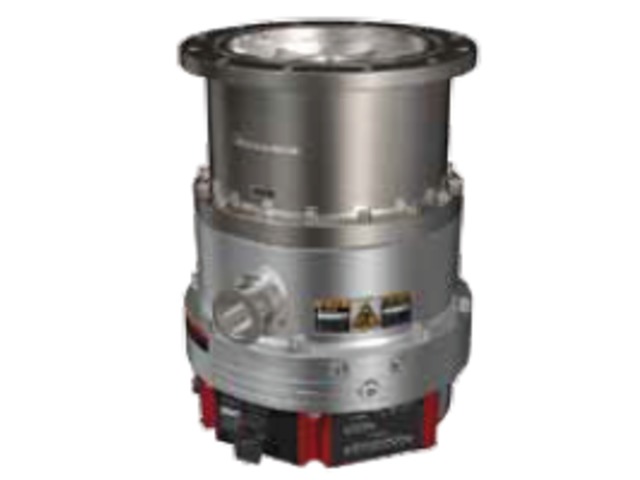

The STP-iX455 turbo-molecular pump features an innovative, magnetic bearing and motor drive system, providing a 50% reduction in vibration compared to previous generation turbo pumps. An integrated controller eliminates the need for a conventional, rack-mounted controller and interconnecting cables, and does not require water cooling.

The pump features 450 ls-1 pumping speed for nitrogen. The STP-iX455 is an excellent fit for electron microscope, metrology, lithography and other vibration sensitive applications.

Max working pressure : 1.3 x 10-1 Pa Allowable backing pressure : 67 Pa Rated speed : 55000 rpm Starting time : <6 min Mounting position : Any orientation Cooling method : Natural cooling (Air cooling fan when baking or gas pumping) Lubricating oil : Not necessary Backing pump : 240 lmin-1 Ambient temperature range : 0 to 40 °C Storage temperature range : -25 to 55 °C
Download the complete technical features
