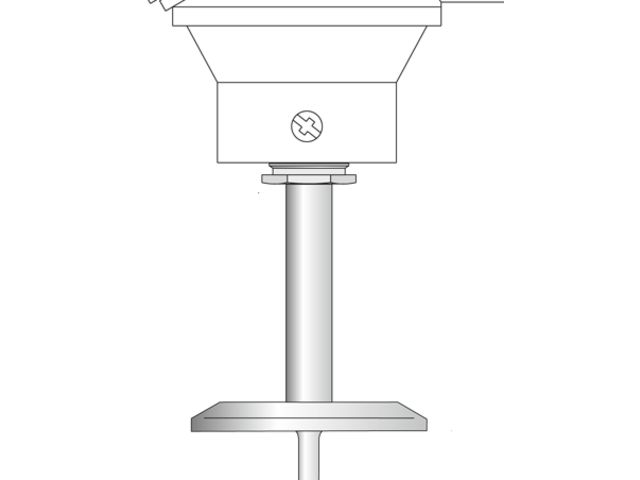

Straight Pt100 probe with Tri-clamp® fitting and extension tube - SI7-CLMP THERMIBEL S.A.

Straight Pt100 probe with Tri-clamp® fitting and extension tube - SI7-CLMP

Temperature probe

Vote

Ask for a quote Receive Documentation Contact the supplier

Sensing element

Pt100 single or duplex
with tolerance class B, A or AA according to IEC 60751 (EN 60751)

Temperature range

-50 to +250 °C

External sheath

AISI 316L seamless tube – wall thickness 1 mm
Diameter: 6 mm by default, other diameters available on request.
Insertion length: standard 100 mm , any other length on request.

Process connection

Standard 1"-1½" Tri-clamp® fitting
Other sizes available on request

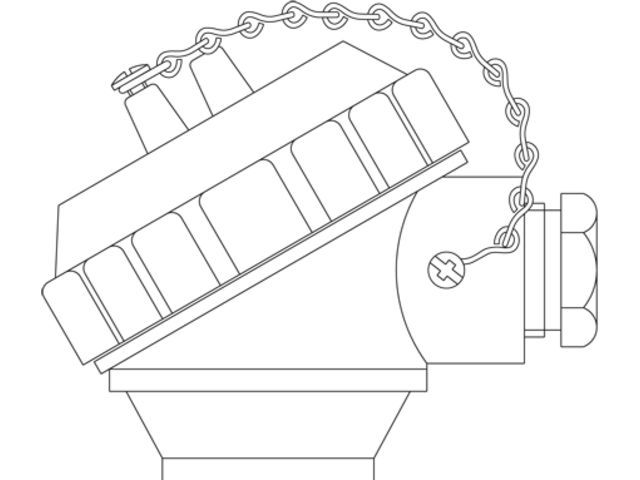

connection head

Standard white PE head IP65 with M20 cable gland
(other types available on request).

wiring

Standard ceramic terminal block
1 x 3-wire connection (1 x 2, 1 x 4, 2 x 2, 2 x 3-wire connection available on request)

APPLICATIONS

Pharmaceutical and food applications.
