Straight thermocouple with refractory steel sheath and ceramic internal sheath : TARP3 series THERMIBEL S.A.

Straight thermocouple with refractory steel sheath and ceramic internal sheath : TARP3 series

Temperature probe

Vote

Ask for a quote Receive Documentation Contact the supplier

Sensing element : Thermocouple type J, K or N, single or duplex with tolerance class according to IEC 60584 (EN 60584)
Temperature range : 0 to 1100 °C
Protection sheaths
Stainless steel (if temperature under 600 °C)
Refractory steel (AISI 310, AISI 446 or 253MA)
Diameter ½" (21,3 mm) - wall thickness 2,6 mm
Insertion length : standard 500, 710, 1000, any other length on request
Pythagoras (KER610) impervious internal sheath allows a better protection of thermocouple wires while improving the rigidity at high temperature.

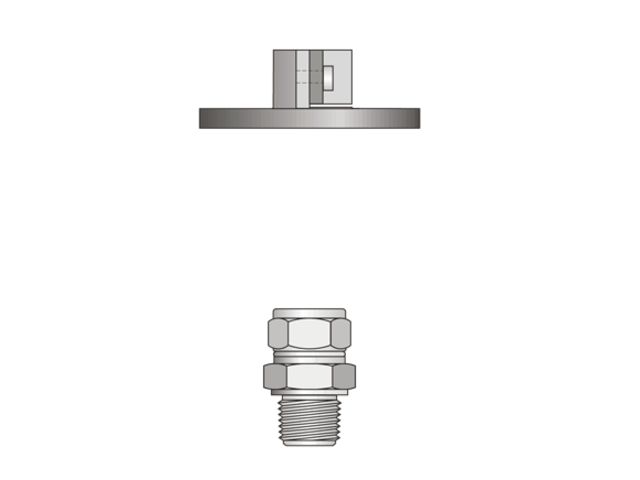

Process connection : Sliding flange or steel sliding connector
Connection head : Standard DIN type A head (other types available on request) with M20 cable gland.
