Sweep frequency response analyzer | FRANEO 800 OMICRON ELECTRONICS

Sweep frequency response analyzer | FRANEO 800

Analyzers

This product is temporarily unavailable.
Think about consulting similar products.

Make a request

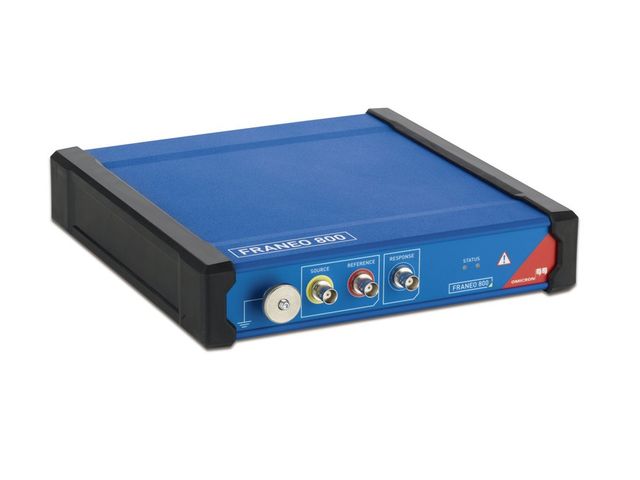

FRANEO 800 was developed for testing the mechanical and electrical integrity of power transformers after transportation or exposure to high fault currents. It uses the SFRA principle (Sweep Frequency Response Analysis) and measures the electrical transfer function over a wide range of frequencies.

FRANEO 800 detects winding defects and faults in the magnetic core - thereby helping to improve transformer reliability, reduce maintenance costs and prevent expensive failures.

Key features:

  • Extremely small and compact device guarantees optimum usability

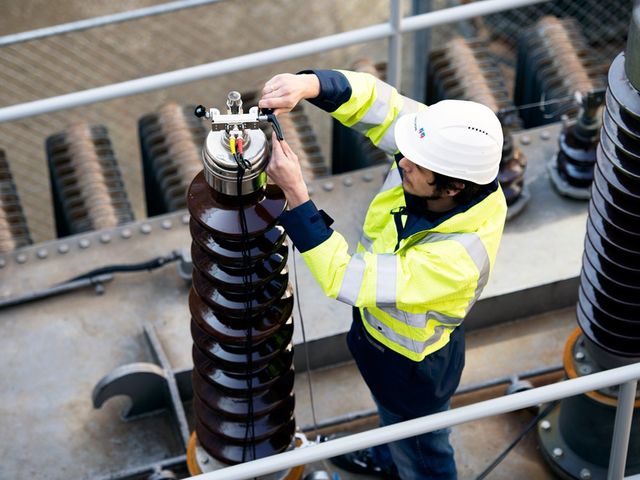

  • Innovative connection technique ensures high level of reproducibility
  • Short measurement times due to the intelligent sweep algorithm
  • Highest dynamic range in SFRA testing industry (> 150 dB)
  • Fully compliant with the IEC 60076-18 and IEEE C57.149 standards

FRANEO 800 can be used for transformer testing, after :

  • a short circuit event
  • before and after transport
  • occurrence of high transient fault currents
  • a significant change in the monitored values (e.g. combustible gases) or a safety shutdown

The following tests can also be performed :

  • Routine transformer condition measurement
  • Verification of unusual events determined during conventional testing

Frequency range : 1 Hz ... 30 MHz Output impedance: 50 Ω (± 2%) Connector : BNC Amplitude : 10 Vpp (at 50 Ω) Dynamic range: > 150 dB (+10 dB ... < -140 dB noise floorRMS) Typical accuracy : ± 0.1 dB (down to -50 dB) and ±0.3 dB (between -50 dB and -100 dB) Guaranteed accuracy : ± 0.3 dB (down to -50 dB) and ±0.5 dB (between -50 dB and -100 dB) Dimensions (w x h x d): 252 x 53 x 265 mm / 10 x 2 x 10.4 in Weight : 1.8 kg / 4 lb (without measuring cables) Relative humidity : 20% ... 95%, non-condensing
Download the complete technical features
