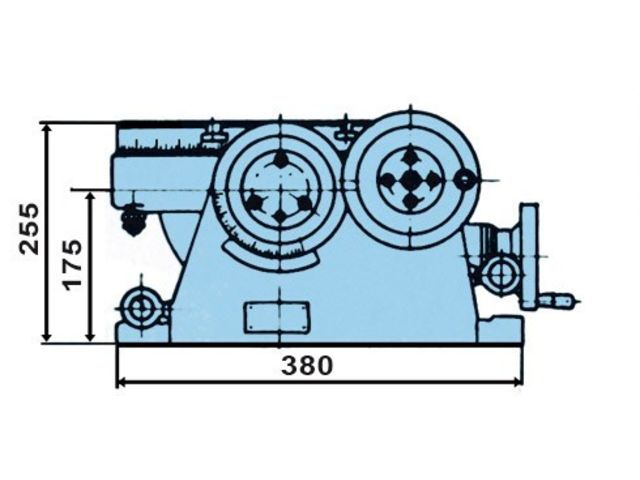

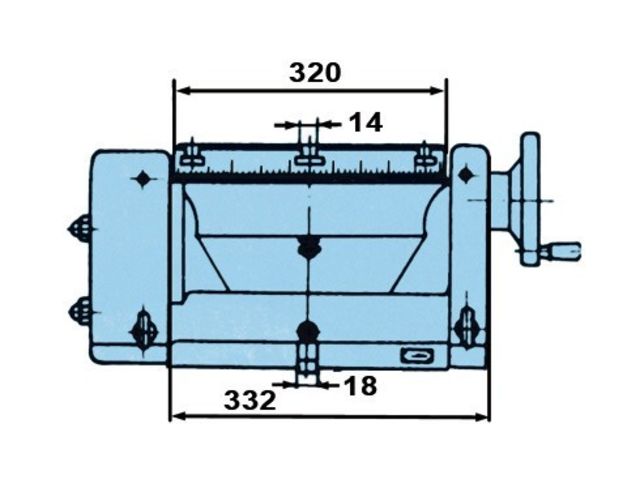

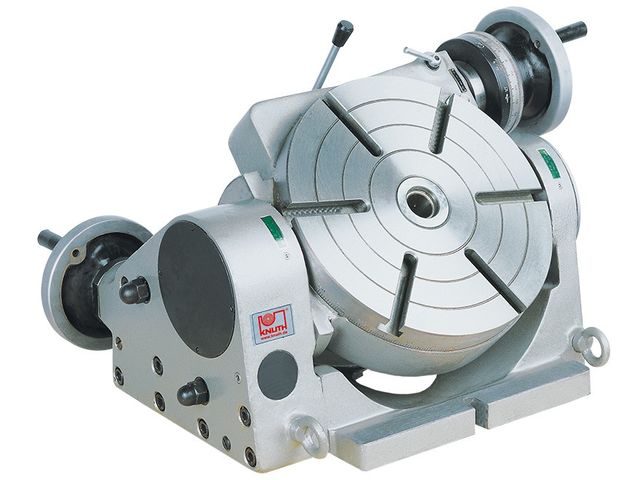

Swibelable Rotary Table - RTS 250

Tool holder for machine tool

Ask for a quote
Receive Documentation Contact the supplier

  • Completely enclosed design, prevents contamination from dirt and chips
  • Setup table rotates on a large, ring-shaped, oil-bath lubricated, guideway
  • The very effective clamp pulls the setup table down straight, without any change of position or radial pressure and presses it against the guideway
  • For quick manual turning, the worm can be disengaged from the worm gear by pushing down the hand-lever
  • Setup table with 360° scale
  • The zero-backlash of worm and worm gear is adjustable
  • The high precision worm gear is almost as large as the rotary table
  • Hardened, ground and oil-bath lubricated worm
  • Worm gear ratio 90:1
  • Hand wheel scale gradation 10''
  • Hand wheel can be replaced with indexing plate

Accuracy:

  • Face concentricity of work table setup surface < = 0.020
  • Concentricity of setup < = 0.020
  • Parallelism of setup to base surface < = 0.020
  • Concentricity of setup table taper bore < = 0.010
  • Parallelism of table setup to transverse slot < = 0,020
  • Division accuracy 45"
