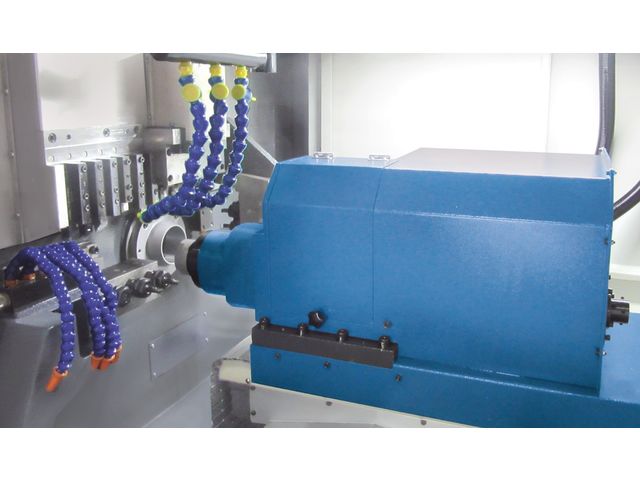

Swiss-type CNC lathe - LineaLunga 20D CNC KNUTH

Swiss-type CNC lathe - LineaLunga 20D CNC

CN Tower

Vote

“ Main spindle and sub-spindle for efficient complete machining ”
Contact the supplier Receive Documentation Ask for a quote

• Machine bed is made of Meehanite HAT 300, carefully heat-treated, high precision machined and subjected to strict quality controls.
• High-quality bearings and linear guides, produced in Japan, feature both accuracy and excellent wear-resistance.
• High-performance preloaded ball screws are equipped with precision bearings to ensure sustained, smooth, vibration-free operation.
• High-torque servo motors by renowned suppliers ensure excellent feed and rapid feed dynamics on all axes.
• Main and sub-spindle, including C-axis allow the production of complex parts in one operating step.
• Proven design, low-maintenance, and easy handling.
• Powerful central coolant system ensures excellent chip removal and long tool life.
• Machining with main spindle and sub-spindle saves setup time, and allows machining of the part’s back side without reclamping the workpiece.
• For tool mounting, only collet systems that are readily available in stores are used.
• A powerful main spindle motor provides sufficient reserve power for demanding production conditions.
• Rapid feeds up to 24000 mm/min, high productivity and production speeds.
• Optional rod loader is available; suitable for use with material feed systems from other suppliers.

Standard equipment : Syntec control, electronic hand-wheel, C axis, Pneumatic system, Main spindle collet system, closed work space, Turning tool holder, guide bushing, Drill bit holder for sub-spindle, interlock, automatic central lubrication, coolant system, setup elements, operating tools, operating manual and programming instructions.

Max. Turning Diameter : 20 mm Drilling diameter (max.) : 10 mm Drilling depth (max.) : 40 mm Spindle bore : 23 mm Spindle speed : 6.000 rpm Turning diameter (max.) : 20 mm Drilling diameter (max.) : 10 mm Turning length (max.) : 245 mm Spindeldrehzahl : 6.000 rpm Number of tool stations total : 18 Pieces
