T-Station 75D NW40 100-120V 50/60Hz EDWARDS SAS

T-Station 75D NW40 100-120V 50/60Hz

Vacuum pump

Vote

Ask for a quote Receive Documentation Contact the supplier

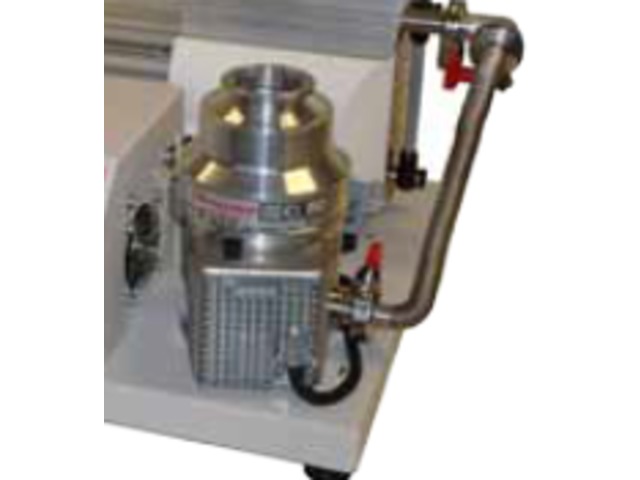

The T-Station 75 is Edwards’s new entry level Turbopumping system. It combines our proven EXT75DX with a choice of either an oil sealed E2M1.5 backing pump or an XDD1 diaphragm pump where a totally dry solution is desired.

The T-Station comes with our new TAG (Turbo and Active Gauge) controller fitted as standard which enables single button start/stop of the system, the ability to control one of our Active Gauges, vent valve control, and delayed start to either time or pressure if a gauge is fitted making the T-Station ideal for general laboratory needs.

Ultimate pressure : <5 x 10-8 mbar Inlet flange : NW40, ISO63 or CF63 Noise level : 55.4 dB(A) Leak tightness : <1 x 10-6 mbar ls-1 Operating temperature range : 10 to 40°C / 50 to 104°F
Download the complete technical features
