Table Moving Vertical Band saw : SVT-3075DM COSEN EMEA

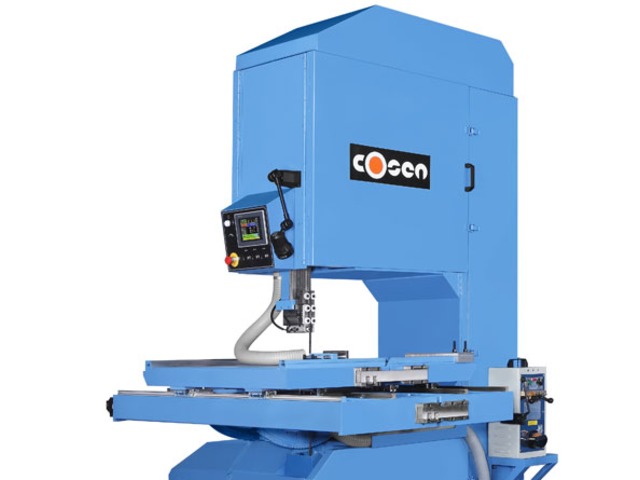

Table Moving Vertical Band saw : SVT-3075DM

Vertical band saw

Vote

Ask for a quote Receive Documentation Contact the supplier

● Feeding speed is controlled by an AC servo motor to make the feeding smoothly.
● The shuttle bed is adapted by linear guide and ball screws
● T- slots bed is fit for fixed variety range of materials.
● Saw wheel frame is available for different width blade.
● High speed blade guide design also having the anti-vibration function.
● Apply new touch screen HMI , to obtain a easier operation interface.

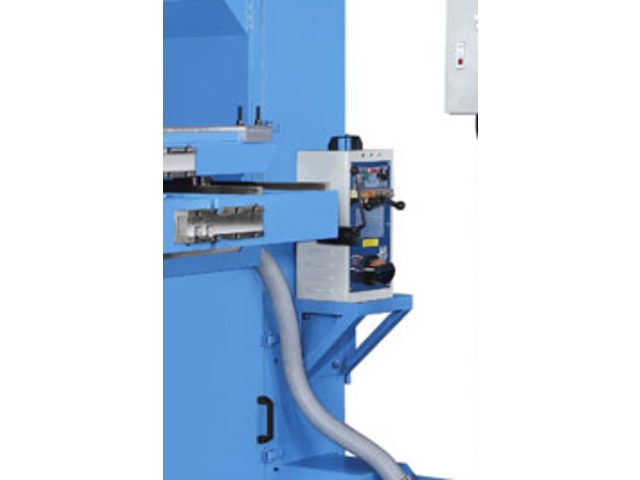

● Hydraulically powered guide arm is controlled in the control panel
● Guide arm is used hydraulically powered system.

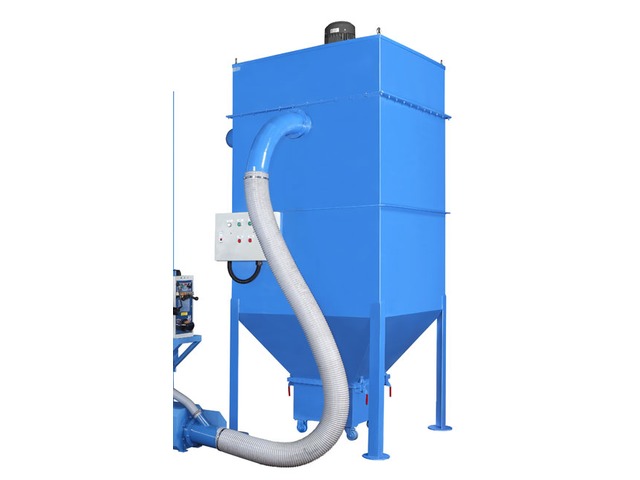

● Pulse type dust collection system ensures clear environment.

Capacity Height : 300 mm (11.8") Capacity Throat : 775 mm (30.5") Capacity Cutting Length : 400 mm (15.7") Blade Speed : 25-4570 m/min Blade Size (LxWxT) : 5945x13x1.1 (234"x0.51"x0.026") Blade Motor : 15HP (11.25kW) Hydraulic Motor : 1HP (0.75kW) Workbed Tilt : -5~+45 Degree Workbed Height : 1250 mm (49.2") Gross Weight : 2350 kgs (5170 lbs)
