TAG Turbo and active gauge controller EDWARDS SAS

TAG Turbo and active gauge controller

Flow controller

Vote

Ask for a quote Receive Documentation Contact the supplier

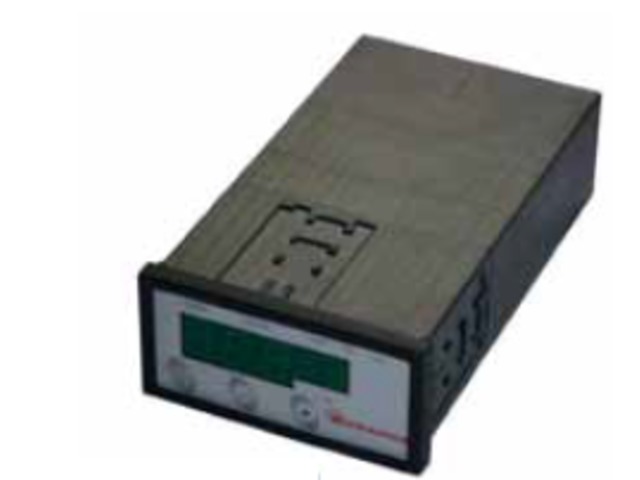

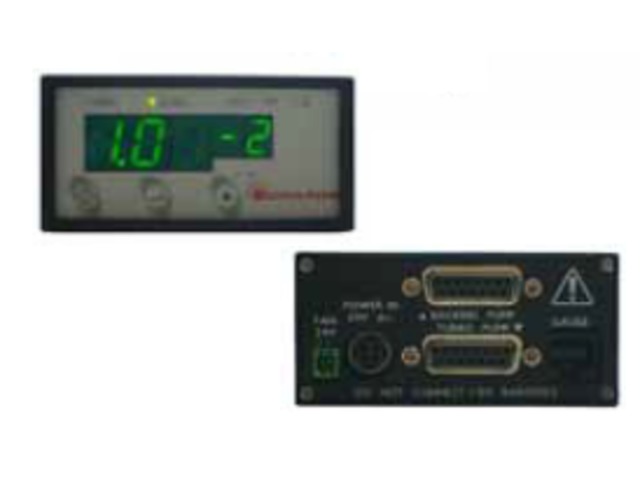

Edwards Turbo and Active (TAG) controller is a small low cost pumping system controller, suitable for a wide range of vacuum applications, and compatible with all Edwards EXT and nEXT turbomolecular pumps. The large LED display shows the pump speed or vacuum pressure, and an easy to use push button interface enables ease of operation and control.

The TAG controller will also run a backing pump, air vent valve, an air cooler and an Edwards active gauge, making the TAG a versatile system controller.

This compact 24 V controller is ideal for use on bench tops or suitable mobile platforms where space is limited, yet functionality and reliability are essential.

NOTE: TAG controller does not contain an in-built power source, a 24 V power supply is available from Edwards or users must supply their own.

Max input Power : 240W Dimensions : 96 x 48 x 165mm Mass : 0.3kg Operating temp : 0°C to 40°C Storage temp : -30°C to 70°C Max ambient operating humidity : 90% RH non-condensing at 40°C Max operating altitude : 2000 m Enclosure rating : IP20. IP40 when panel mounted.
Download the complete technical features
