Thermo-anemometer with vane probe: LV110/111/117

Thermo-anemometer with vane probe: LV110/111/117 Sauermann - KIMO

Thermo-anemometer with vane probe: LV110/111/117

Vote

“ - Velocity, airflow & temperature - Airflow calculation - Automatic average - Hold function and min-max values - Selection of units - Airflow calculation, airflow calculation with cone (LV 110/117), detection of flow direction - Vane: LV111: Ø14 mm / LV117: Ø70 mm/ LV110: Ø100 mm ”

Ask for a quote

Presentation

Thermo-anemometer with vane probe

Wired probe, hold-min-max functions, adjustable automatic shut-off, adjustable backlight. IP54 ABS housing.

LV 110: Ø 100 mm vane probe

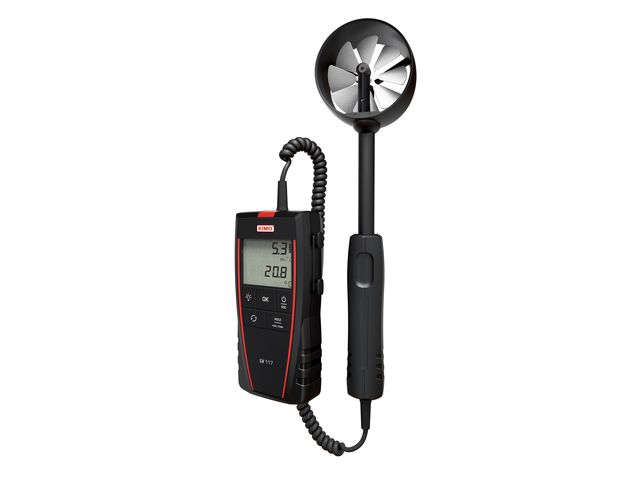

LV 117: Ø 70 mm vane probe

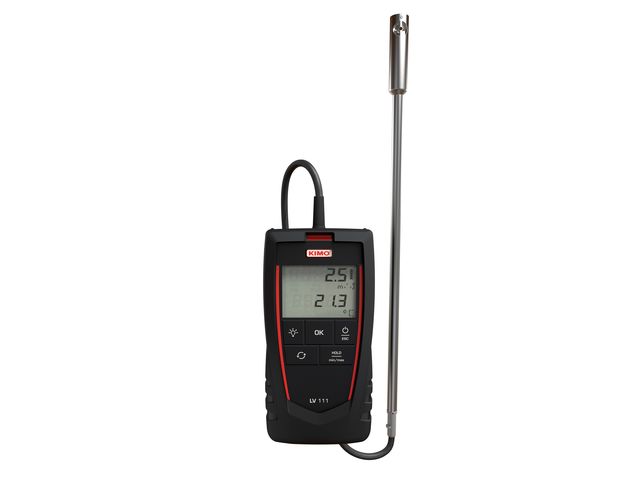

LV 111: Ø 14 mm vane probe

Airflow calculation, airflow calculation with cone (LV 110/117), automatic average, detection of flow direction.

Measuring range

LV 110: 0.3 to 35 m/s
LV 117: 0.4 to 35 m/s
LV 111: 0.8 to 25 m/s
Temperature : 0 to +50°C
Airflow: 0 to 99 999 m³/h

Supplied with calibration certificate and transport case.

- Velocity, airflow & temperature
- Airflow calculation
- Automatic average
- Hold function and min-max values
- Selection of units
- Airflow calculation, airflow calculation with cone (LV 110/117), detection of flow direction
- Vane: LV111: Ø14 mm / LV117: Ø70 mm/ LV110: Ø100 mm

Technical features

Airflow calculation Hold function and min-max values Airflow calculation, airflow calculation with cone (LV 110/117), detection of flow direction Automatic average Selection of units Vane: LV 111: Ø 14 mm / LV 117: Ø 70 mm/ LV 110: Ø 100 mm

Download the complete technical features
