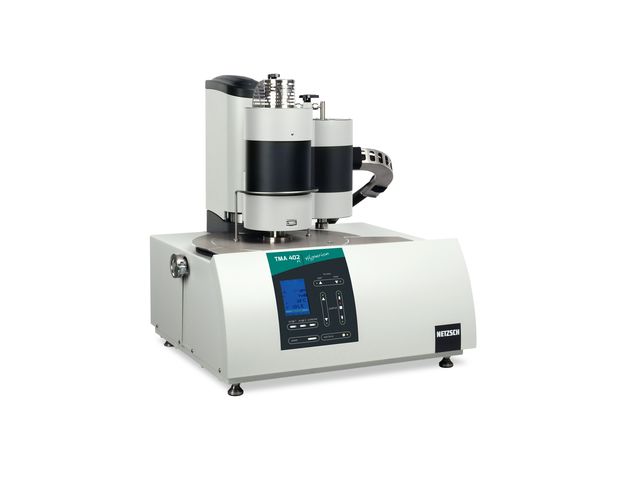

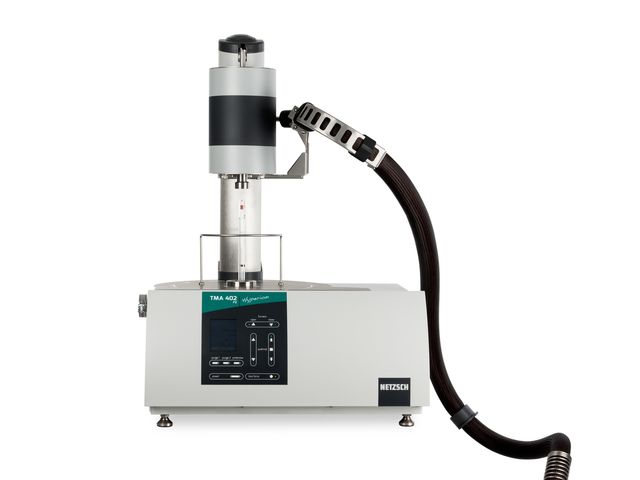

The heart of the TMA 402 Hyperion® is a highly precise inductive displacement transducer (LVDT). This technology has stood the test of time; it is also used for dilatometers and allows measurement of even the smallest of length changes, into the nanometer range (digital resolution of 0.125 nm).
The force operating on the sample is generated electromagnetically in the TMA 402 Hyperion®. This guarantees a quick response time for experiments with a changing load, e.g. tests on creep behavior. A highly sensitive force sensor (digital resolution < 0.01 mN) continuously measures the force exerted via the push rod and readjusts it automatically. This sets the TMA 402 Hyperion® apart from other instruments, which use only preset values.
The electronic control system for the TMA 402 Hyperion® allows forces to be set in the mN-range. This enables testing even on sensitive materials such as thin fibers or films. The force operating on the sample can be altered via
the software in a stepwise or linear fashion. This makes it particularly simple to carry out such analyses as creep or stress sweep tests. The premium version of the TMA 402 Hyperion®, the TMA 402 F1 Hyperion®, provides even more capabilities.
From single pulse in rectangular or ramp form to continuous modulation with a freely selectable frequency (up to 1 Hz), every possibility is covered. This model is particularly well-suited for determining visco-elastic material properties such as elasticity and creep modulus.
