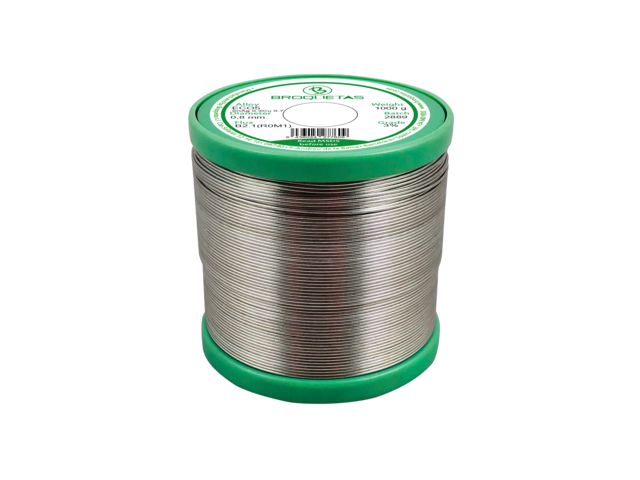

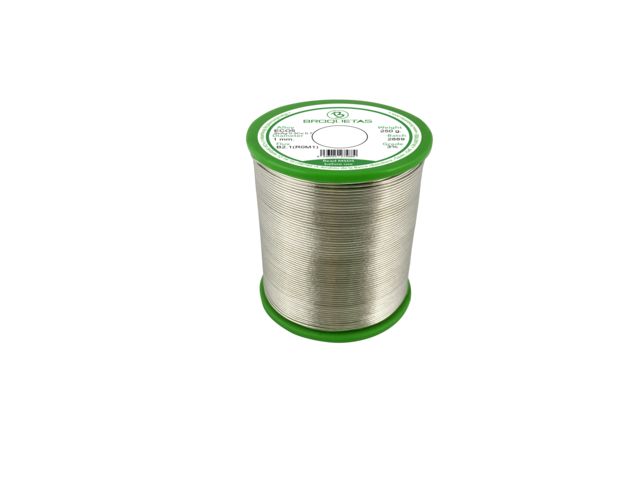

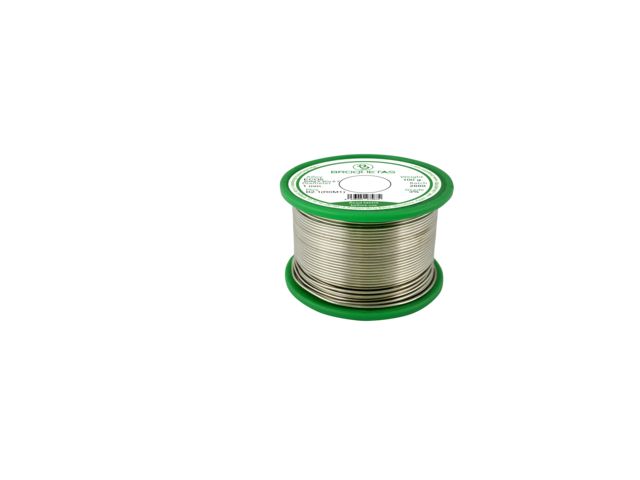

TIN WIRE FOR ELECTRONIC SOLDERING (ECO 5) BROQUETAS SL

TIN WIRE FOR ELECTRONIC SOLDERING (ECO 5)

Welding wires

Vote

“ - High and fast wetting properties. - Excellent reliability and solidity of the weld. - High electrical conductivity. - Excellent performance and compatibility with a wide range of flux technologies. - Low cost compared to alloys with high silver content. ”
Ask for a quote Receive Documentation Contact the supplier


ECO 5 (Sn99-Ag0.3-Cu0.7) is a high performance lead-free alloy based on tin, copper and silver, primary metals, which give it a high degree of fluidity. The composition of this alloy complies with ISO 9453: 2015 (alloy 501) and RoHS regulations. This makes our ECO 5 alloy useful in a variety of processes, including:

Wave, selective and dip welding.
Insertion and reworking of components for surface mount technology for the automotive electronics assembly industry.
TECHNICAL DATA - ECO 5
Melting point (ºC) 221/227
Density at 20 ° C (gcm-3) 7.33
Tensile strength (MPa) 29.4
Elongation (%) 22 (figure 1a)
Hardness (HB) 14

AVAILABLE FORMATS
Diameter: 0.5mm - 6mm

Plastic spools of:
100 g .: 30 units / box
250 g .: 40 units / box
500 g .: 20 units / box
1 kg .: 10 units / box
2 kg and 4 kg: on request

** Consult other formats.
