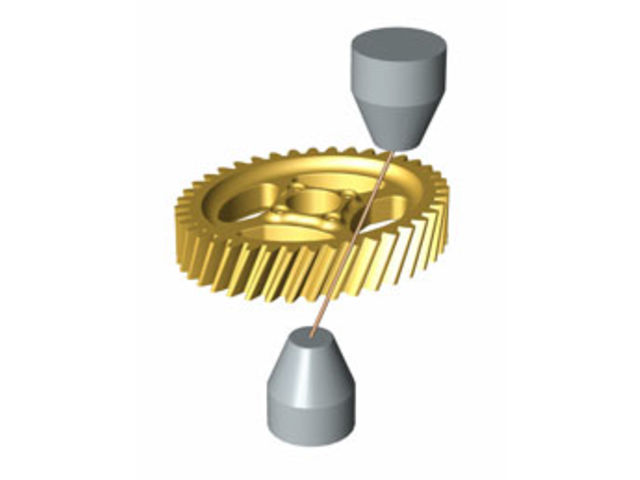

When tools have been designed in 3D it is often necessary to remove certain areas by wire EDM. These repetitive and tedious operations for manufacturing preparation add little value to the product itself. With TopSolid'Wire, adapted and optimized machine codes can be created in a short timeframe on the basis of any 2D or 3D file (wire, surface or volume model) suited for straight cuts up to 4 axes.
Data retrieval
IGES, DXF, Catia, STEP, SAT, Parasolid
Integrated surface and volume modeler
Calculation of gaps and prolongation of surfaces
Electrical discharge gap during roughing or finishing
Automatic tangential prolongation of surfaces
Easy modification
Control of multiple drafts
Part of Missler's integrated solution
TopSolid'Wire especially complements TopSolid'Mold,
TopSolid'Progress and other solutions of this product line. It therefore guarantees high associativity and dramatic productivity increases.
Optimum continuation of design in manufacturing
Machining based on profiles or surfaces
Automatic profile offset in Z direction
Recognition of surfaces and drafts
Selection of configurable elements
Destructive roughing
Optimized tool paths
TopSolid'Wire supports important machining strategies and machine technologies
Control of loops, edges and corner conditions
Optimized chaining of tool paths
Management of day/night strategies with automatic threading and cutting of the wire
2 to 4-axis-machining for all machines
Machine table control
Consideration of machining speed tables
Optimized and configurable post processors
