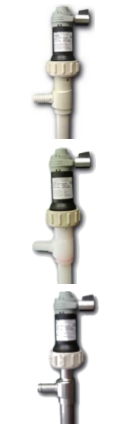

TR PNEU Drum pumps

Pneumatic drum emptying pump

Vote

Ask for a quote

Presentation

Vertical centrifugal pumps constructed from PP, PVDF, AISI. 316 steel and with internal parts in polypropylene, PVDF, Ryton. Practical and handy, they allow discontinuous service and they are ideal for transfering non-abrasive and non-viscous chemical products contained in drums and barrels.

Compatibly with the chemical resistance of the construction materials, TR pumps are in fact appropriate for use with liquids free-of abrasive suspended solids at ambient temperature with a specific gravity up to 1.8 and viscosity up to 14 cps.

They are instead not appropriate for flammable liquids and/or for use in areas with potentially explosive atmospheres.

Characteristics

Length: up to 1 200 mm

Dip tube: Ø 42 mm (PP), Ø 40 mm (PVDF) and Ø 42.5 (AISI 316).

Maximum temperature: 50°C (PP), 85°C (PVDF/AISI 316 steel)

Maximum flow rate: 80 l/min

Pneumatic motor 0.5 HP, 7 bars

Materials: PTFE bushings, HASTELLOY C shaft (PP/PVDF) or AISI 316 steel shaft, internal parts composed of PP/PTFE, PVDF/PTFE, PTFE/RYTON.

Opinion on the product
