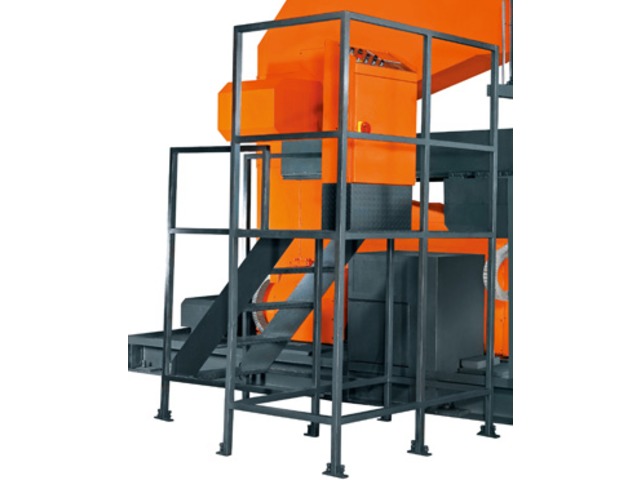

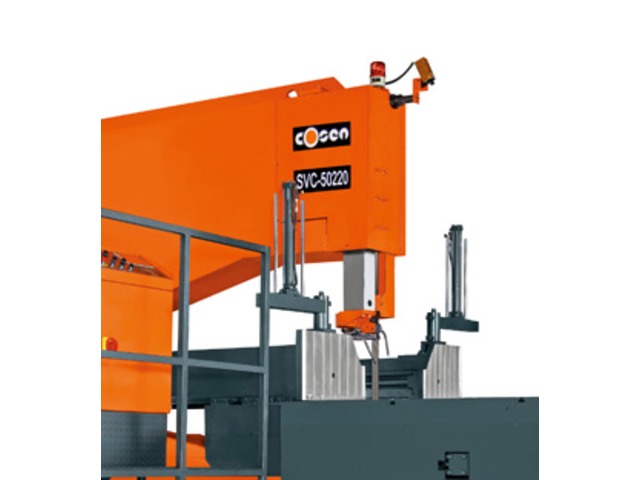

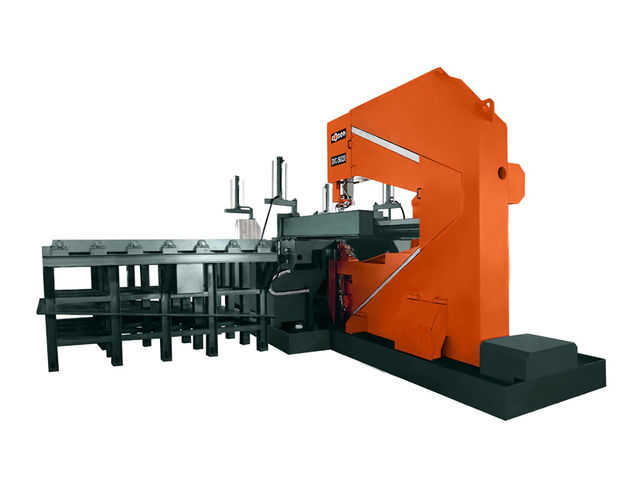

Traversing Head Cross Cutting Plate Saws : SVC-50220 COSEN EMEA

Traversing Head Cross Cutting Plate Saws : SVC-50220

Automatic band saw

Vote

Ask for a quote Receive Documentation Contact the supplier

Saw frame travel is done by using an AC servo motor coupled with ball screw. This system offers high smooth, pulse free feeding speed.

● 10 hp motor ● 54mm (2.1”s) blade ● inverter-controlled blade speed ● high precision worm gearbox ● positive feed saw frame with variable feed rate & pressure control valve ● high strength saw frame traveling on linear guides ● hydraulic powered wire brush system with adjustable speed ● sturdily built fixed work bed ● hydraulic powered guide arm ● independent control panel

Capacity Height : 500 mm (19.7 Capacity Throat : 2200 mm (86.6 Blade Speed : 20-80 m/min (65-262 ft/min) Blade Size (LxWxT) : 9800x54x1.6 (326.8 Blade Motor : 10HP (7.5kW) Hydraulic Motor : 2HP (1.5kW) Coolant Motor : 1/2HP (0.375kW) Workbed Height : 1620 mm (63.8 Gross Weight : 15000 kgs (33000 lbs) Floor Space (WxH) : 7520x2400x3800 mm (296
