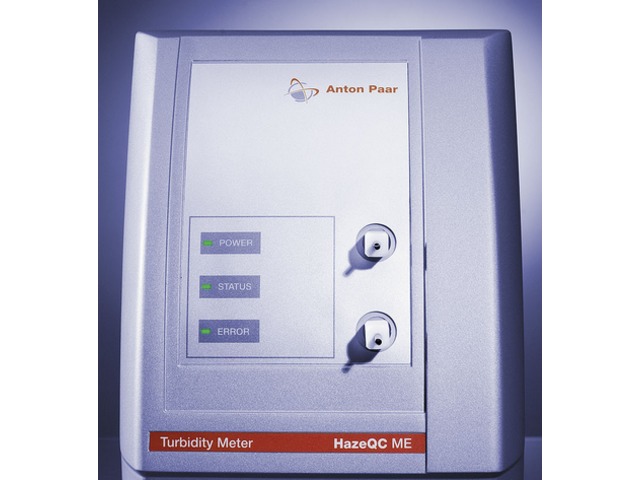

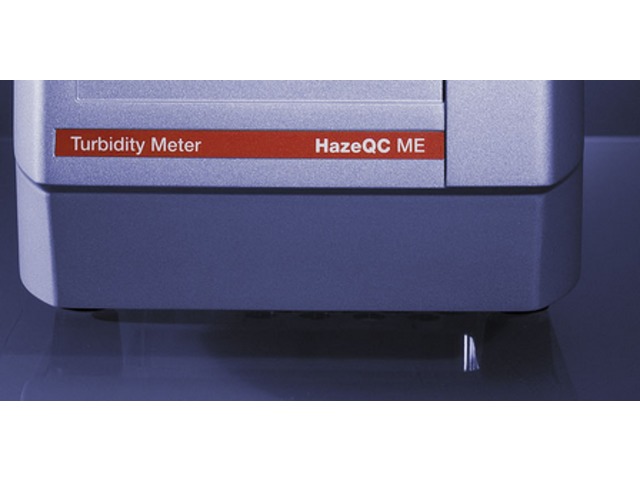

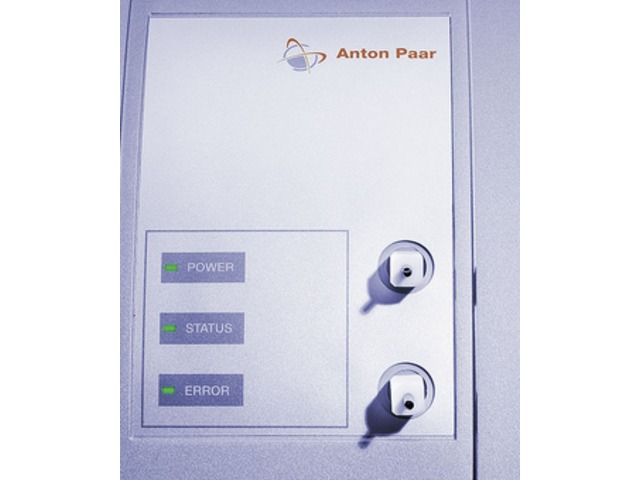

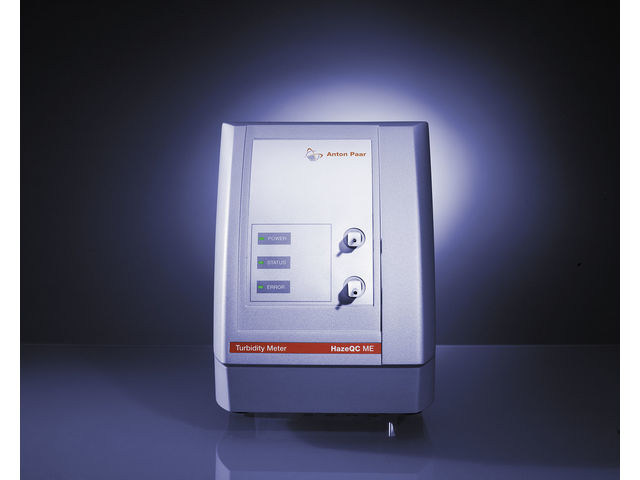

A solution for the measurement of turbidity in liquids, the HazeQC ME turbidity measuring module, is now provided by Anton Paar as part of a new modular measuring system.
The approved ratio method with measurement at three angles (transmission 0°, scattered light at 25° and 90°) is used to prevent the influence of particle size on the turbidity value. The measurement is carried out at a wavelength of 650 nm ±30 nm (MEBAK- and EBC-compliant) in a cell with adjustable constant temperature.
This turbidity measuring module expands Anton Paar's product portfolio and adds a further important parameter for analyzing liquid samples - providing the same high quality expected of Anton Paar products.
Accurate and traceable turbidity measurement
• Three-angle turbidity measurement (transmission 0°, scattered light at 25° and 90°) at 650 nm according to MEBAK and EBC.
• Approved ratio method eliminates the influence of particle size on the turbidity value.
• Highly accurate Peltier-thermostatted cell (0.01 °C stability).
Combinations for up to 7 parameters possible
• Up to 7 parameters in one measuring cycle if used in combination with PBA-B (density, alcohol, beer color, pH, CO2, O2, turbidity).
• Combination with all Generation M systems, with Alcolyzer Plus Beer, with Alcolyzer Plus Spirits or with the Beer Analyzing System (Alcolyzer Plus Beer, density meter, sample changer).
• All measurements directly out of the bottle or can, no degassing required if using a PFD Filling Device.
