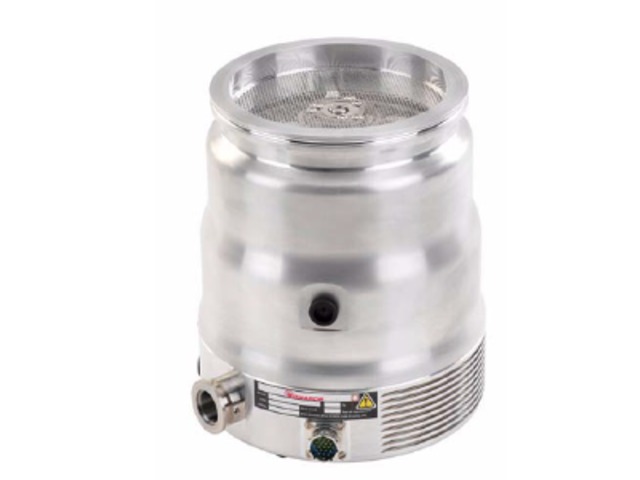

Turbomolecular Pumps : EXT556H DN160ISO-K

Vacuum pump

Vote

Ask for a quote

Presentation

The EXT556H incorporates our hybrid bearing and enhanced molecular drag pumping technologies with turbopump stages on a single rotor. It is an 80V pump and therefore must be used with an EXC300 controller.

The EXC300 is a fully featured controller with a user panel, backing pump relay and bake-out band control. It is rack mountable and can power an air cooler and control a vent valve as well as the turbopump.

A basic pump system would require an EXT556H pump, an EXC300 controller, a pump to controller cable, either an air or water cooler accessory, and a suitable backing pump.

Technical features

Ultimate Pressure (CF variant) : <10-10 mbar Recommended backing pump : RV12/nXDS10i Nominal rotational speed : 50000 rpm Cooling method : Forced air/water Ambient air temp for forced air cooling : 0 °C - 35 °C Recommended cooling water flow rate (water at 15°C) : 15 lh-1 Water temp range : 10 - 20 °C Max inlet flange temp : 80 °C Operating attitude : Vertical and upright, through to horizontal Noise level at 1 metre : <60 dB(A)

Download the complete technical features
