Type

Temperature sensors

“ Ultra-robust steel shielding against industrial impacts. Insulated Type J Thermocouple for absolute precision measurements. The ultimate reliability for your extreme environments! ”

Ask for a quote

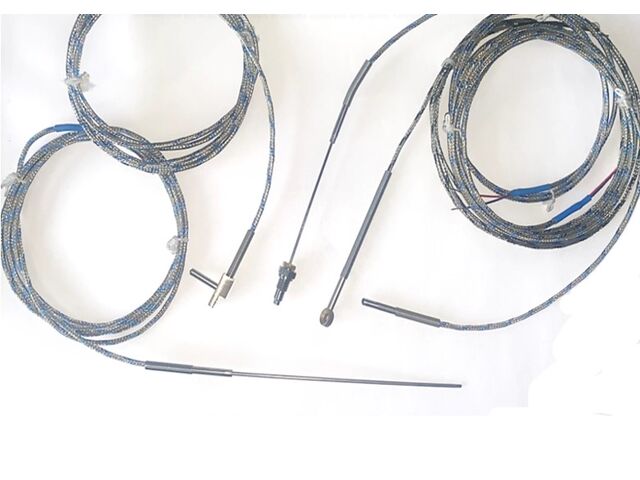

Optimize the quality of your plastic parts with our high-performance thermocouples, specially designed for ultra-precise temperature measurement at the core of the material.

Why choose our thermocouples for your EPA® nozzles?

Impeccable thermal regulation is the key factor for successfully processing sensitive plastic materials. Our thermocouples do not just measure the nozzle temperature; they provide you with an accurate reflection of the actual temperature of your plastic material.

The advantages of EPA® technology:

Extreme reliability and durability: Thanks to argon electrical discharge wire welding and argon-arc sealing, our sensors withstand the most demanding industrial environments.

Interference-free precision: The measuring circuit is perfectly insulated from the ground, guaranteeing a stable and precise reading, even in the presence of stray currents.

Installation flexibility: Ground insulation allows multiple sensors (TCSJ) to be installed on the same part without any risk of interference between circuits.

Immediate adaptability: Bayonet fitting system with quick and simple depth adjustment by moving the lock-ring on the spring.

Master your process with our regulation range

Measurement precision is only effective when combined with high-performance control. Using a suitable controller is essential to guarantee the repeatability and quality of your production.

EPA® offers a complete range of guaranteed controllers, designed to interface perfectly with our thermocouples and give you total control over your plastic processing operations.

Contact our EPA® experts today.

Technical features

High-resistance material : Stainless steel (Inox) protective sheath. Sensor type : Type J Thermocouple with insulated hot junction (optimal protection against electrical interference). Temperature range : From -40 °C to +750 °C. Probe dimensions (Length L) : Adjustable from 100 to 600 mm. Cable length (Braid A) : Available from 900 to 3000 mm. Available diameters : 1 mm or 2 mm. Standards & Certifications : Compliant with CE Marking and NF Certification.
